Silicone Rubber Heating Blankets

Many industrial heating applications require heaters with the ability to resist moisture, chemicals and abusive environments. These same applications also require rapid heat-up, steady temperature maintenance, and uniform heat distribution.

$76
Add to wishlist
Under the order

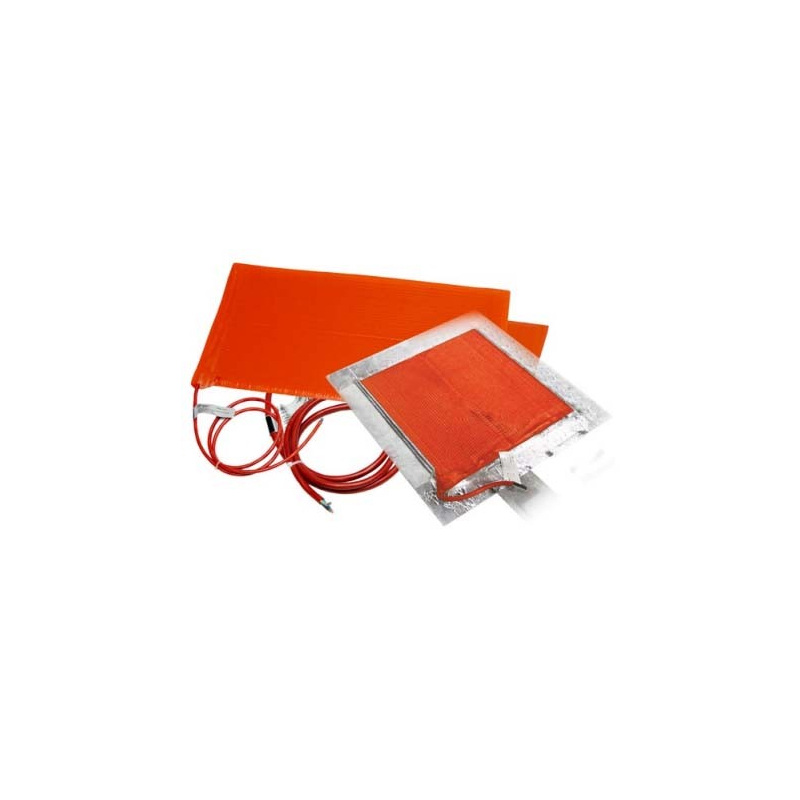

Silicone Rubber Heating Blankets

Many industrial heating applications require heaters with the ability to resist moisture, chemicals and abusive environments. These same applications also require rapid heat-up, steady temperature maintenance, and uniform heat distribution. For conditions such as these, BriskHeat® Silicone Rubber Heating Blankets are the best products available.

  • Silicone rubber heating blankets are an extremely versatile and thin electric surface heater with a variety of applications across many industries.
  • Low profile heater design is ideal for heating surfaces like tanks, hoppers, conveyors, silos, etc.
  • Suitable for a Large Range of Environments
    • Moisture and chemical resistant
    • Hazardous-area approved model option
  • Silicone rubber provides exceptional durability and longevity.
  • Moisture, chemical and radiation resistant silicone rubber.
  • Available with industrial strength pressure sensitive adhesive backing for easy installation (see ordering options).
  • 360° grounded heating element for your safety meets NEC 427.23
  • Heating element is laminated between two layers of 20mil fiberglass reinforced silicone rubber.
  • Optional high-limit thermostat to protect the heater and the contents being heated.
  • Ingress Protection Rating: IP66
  • Uniform Heat Distribution
    • Up to 450°F (232°C)
  • Standard power densities:
    • SRL series(*): 2.5 W/in² (0.004 W/mm²)
    • SRP series: 1.25 W/in² (0.002 W/mm²)
  • Minimum exposure temperature: -60°F (-51°C)
  • Maximum exposure temperature: 450°F (232°C)
  • Dielectric strength: Over 2000 volts
  • Silicone density: 21.7oz/yd² (736g/m²) per layer
  • Electrical power leads: 48" (1219mm) standard length with bare wire leads
  • Voltage options: single phase 120, 208, 240, 277, 480, or 600VAC
  • Bare wire connection (plug not included)
  • Temperature controller required
  • Ingress Protection Rating: IP66

* Contact Us for application assistance if SRL series will be used on a plastic surface.

  • Viscosity and temperature control
  • Freeze protection
  • Storage tanks
  • Hoppers
  • Enclosures / control panels
  • Silos
  • Conveyors
  • Presses
  • Vats
  • Tank trucks
  • Low temperature ovens
Part number voltage Width, mm Length wattage PSA Adhesive Type Price
SRP24362P 240 24 in (610 mm) 36 in (914 mm) 1080 Yes PSA SRP (For Plastic) $545
SRL12362 240 12 in (305 mm) 36 in (914 mm) 1080 No PSA SRL (For Metal) $284
SRL06242P 240 6 in (152 mm) 24 in (610 mm) 360 Yes PSA SRL (For Metal) $119
SRP18361 120 18 in (457 mm) 36 in (914 mm) 810 No PSA SRP (For Plastic) $421
SRP12121P 120 12 in (305 mm) 12 in (305 mm) 180 Yes PSA SRP (For Plastic) $119
SRL06362 240 6 in (152 mm) 36 in (914 mm) 540 No PSA SRL (For Metal) $152
SRL24241P 120 24 in (610 mm) 24 in (610 mm) 1440 Yes PSA SRL (For Metal) $380
SRP12241 120 12 in (305 mm) 24 in (610 mm) 360 No PSA SRP (For Plastic) $170
SRP06121P 120 6 in (152 mm) 12 in (305 mm) 90 Yes PSA SRP (For Plastic) $84
SRP18182P 240 18 in (457 mm) 18 in (457 mm) 405 Yes PSA SRP (For Plastic) $248
SRL24361 120 24 in (610 mm) 36 in (914 mm) 2160 No PSA SRL (For Metal) $449
SRL12361P 120 12 in (305 mm) 36 in (914 mm) 1080 Yes PSA SRL (For Metal) $328
SRP06241 120 6 in (152 mm) 24 in (610 mm) 180 No PSA SRP (For Plastic) $99
SRP18362 240 18 in (457 mm) 36 in (914 mm) 810 No PSA SRP (For Plastic) $421
SRP12122P 240 12 in (305 mm) 12 in (305 mm) 180 Yes PSA SRP (For Plastic) $119
SRL18181 120 18 in (457 mm) 18 in (457 mm) 810 No PSA SRL (For Metal) $218
SRL06361P 120 6 in (152 mm) 36 in (914 mm) 540 Yes PSA SRL (For Metal) $174
SRL24242P 240 24 in (610 mm) 24 in (610 mm) 1440 Yes PSA SRL (For Metal) $380
SRP12242 240 12 in (305 mm) 24 in (610 mm) 360 No PSA SRP (For Plastic) $170
SRP06122P 240 6 in (152 mm) 12 in (305 mm) 90 Yes PSA SRP (For Plastic) $84
SRL12121 120 12 in (305 mm) 12 in (305 mm) 360 No PSA SRL (For Metal) $99
SRL24362 240 24 in (610 mm) 36 in (914 mm) 2160 No PSA SRL (For Metal) $449
SRL12362P 240 12 in (305 mm) 36 in (914 mm) 1080 Yes PSA SRL (For Metal) $328
SRP06242 240 6 in (152 mm) 24 in (610 mm) 180 No PSA SRP (For Plastic) $99
SRP18361P 120 18 in (457 mm) 36 in (914 mm) 810 Yes PSA SRP (For Plastic) $477
SRL06121 120 6 in (152 mm) 12 in (305 mm) 180 No PSA SRL (For Metal) $76
SRL18182 240 18 in (457 mm) 18 in (457 mm) 810 No PSA SRL (For Metal) $218
SRL06362P 240 6 in (152 mm) 36 in (914 mm) 540 Yes PSA SRL (For Metal) $174
SRP24241 120 24 in (610 mm) 24 in (610 mm) 720 No PSA SRP (For Plastic) $328
SRP12241P 120 12 in (305 mm) 24 in (610 mm) 360 Yes PSA SRP (For Plastic) $195
SRL12122 240 12 in (305 mm) 12 in (305 mm) 360 No PSA SRL (For Metal) $99
SRL24361P 120 24 in (610 mm) 36 in (914 mm) 2160 Yes PSA SRL (For Metal) $545
SRP12361 120 12 in (305 mm) 36 in (914 mm) 540 No PSA SRP (For Plastic) $284
SRP06241P 120 6 in (152 mm) 24 in (610 mm) 180 Yes PSA SRP (For Plastic) $119
SRP18362P 240 18 in (457 mm) 36 in (914 mm) 810 Yes PSA SRP (For Plastic) $477
SRL06122 240 6 in (152 mm) 12 in (305 mm) 180 No PSA SRL (For Metal) $76
SRL18181P 120 18 in (457 mm) 18 in (457 mm) 810 Yes PSA SRL (For Metal) $248
SRP06361 120 6 in (152 mm) 36 in (914 mm) 270 No PSA SRP (For Plastic) $152
SRP24242 240 24 in (610 mm) 24 in (610 mm) 720 No PSA SRP (For Plastic) $328
SRP12242P 240 12 in (305 mm) 24 in (610 mm) 360 Yes PSA SRP (For Plastic) $195
SRL18361 120 18 in (457 mm) 36 in (914 mm) 1620 No PSA SRL (For Metal) $421
SRL12121P 120 12 in (305 mm) 12 in (305 mm) 360 Yes PSA SRL (For Metal) $119
SRL24362P 240 24 in (610 mm) 36 in (914 mm) 2160 Yes PSA SRL (For Metal) $545
SRP12362 240 12 in (305 mm) 36 in (914 mm) 540 No PSA SRP (For Plastic) $284
SRP06242P 240 6 in (152 mm) 24 in (610 mm) 180 Yes PSA SRP (For Plastic) $119
SRL12241 120 12 in (305 mm) 24 in (610 mm) 720 No PSA SRL (For Metal) $170
SRL06121P 120 6 in (152 mm) 12 in (305 mm) 180 Yes PSA SRL (For Metal) $84
SRL18182P 240 18 in (457 mm) 18 in (457 mm) 810 Yes PSA SRL (For Metal) $248
SRP06362 240 6 in (152 mm) 36 in (914 mm) 270 No PSA SRP (For Plastic) $152
SRP24241P 120 24 in (610 mm) 24 in (610 mm) 720 Yes PSA SRP (For Plastic) $380
SRL06241 120 6 in (152 mm) 24 in (610 mm) 360 No PSA SRL (For Metal) $99
SRL18362 240 18 in (457 mm) 36 in (914 mm) 1620 No PSA SRL (For Metal) $421
SRL12122P 240 12 in (305 mm) 12 in (305 mm) 360 Yes PSA SRL (For Metal) $119
SRP24361 120 24 in (610 mm) 36 in (914 mm) 1080 No PSA SRP (For Plastic) $449
SRP12361P 120 12 in (305 mm) 36 in (914 mm) 540 Yes PSA SRP (For Plastic) $328
SRL12242 240 12 in (305 mm) 24 in (610 mm) 720 No PSA SRL (For Metal) $170
SRL06122P 240 6 in (152 mm) 12 in (305 mm) 180 Yes PSA SRL (For Metal) $84
SRP18181 120 18 in (457 mm) 18 in (457 mm) 405 No PSA SRP (For Plastic) $218
SRP06361P 120 6 in (152 mm) 36 in (914 mm) 270 Yes PSA SRP (For Plastic) $174
SRP24242P 240 24 in (610 mm) 24 in (610 mm) 720 Yes PSA SRP (For Plastic) $380
SRL06242 240 6 in (152 mm) 24 in (610 mm) 360 No PSA SRL (For Metal) $99
SRL18361P 120 18 in (457 mm) 36 in (914 mm) 1620 Yes PSA SRL (For Metal) $477
SRP12121 120 12 in (305 mm) 12 in (305 mm) 180 No PSA SRP (For Plastic) $99
SRP24362 240 24 in (610 mm) 36 in (914 mm) 1080 No PSA SRP (For Plastic) $449
SRP12362P 240 12 in (305 mm) 36 in (914 mm) 540 Yes PSA SRP (For Plastic) $328
SRL24241 120 24 in (610 mm) 24 in (610 mm) 1440 No PSA SRL (For Metal) $328
SRL12241P 120 12 in (305 mm) 24 in (610 mm) 720 Yes PSA SRL (For Metal) $195
SRP06121 120 6 in (152 mm) 12 in (305 mm) 90 No PSA SRP (For Plastic) $76
SRP18182 240 18 in (457 mm) 18 in (457 mm) 405 No PSA SRP (For Plastic) $218
SRP06362P 240 6 in (152 mm) 36 in (914 mm) 270 Yes PSA SRP (For Plastic) $173,25
SRL12361 120 12 in (305 mm) 36 in (914 mm) 1080 No PSA SRL (For Metal) $284
SRL06241P 120 6 in (152 mm) 24 in (610 mm) 360 Yes PSA SRL (For Metal) $119
SRL18362P 240 18 in (457 mm) 36 in (914 mm) 1620 Yes PSA SRL (For Metal) $477
SRP12122 240 12 in (305 mm) 12 in (305 mm) 180 No PSA SRP (For Plastic) $99
SRP24361P 120 24 in (610 mm) 36 in (914 mm) 1080 Yes PSA SRP (For Plastic) $545
SRL06361 120 6 in (152 mm) 36 in (914 mm) 540 No PSA SRL (For Metal) $152
SRL24242 240 24 in (610 mm) 24 in (610 mm) 1440 No PSA SRL (For Metal) $328
SRL12242P 240 12 in (305 mm) 24 in (610 mm) 720 Yes PSA SRL (For Metal) $195
SRP06122 240 6 in (152 mm) 12 in (305 mm) 90 No PSA SRP (For Plastic) $76
SRP18181P 120 18 in (457 mm) 18 in (457 mm) 405 Yes PSA SRP (For Plastic) $248
