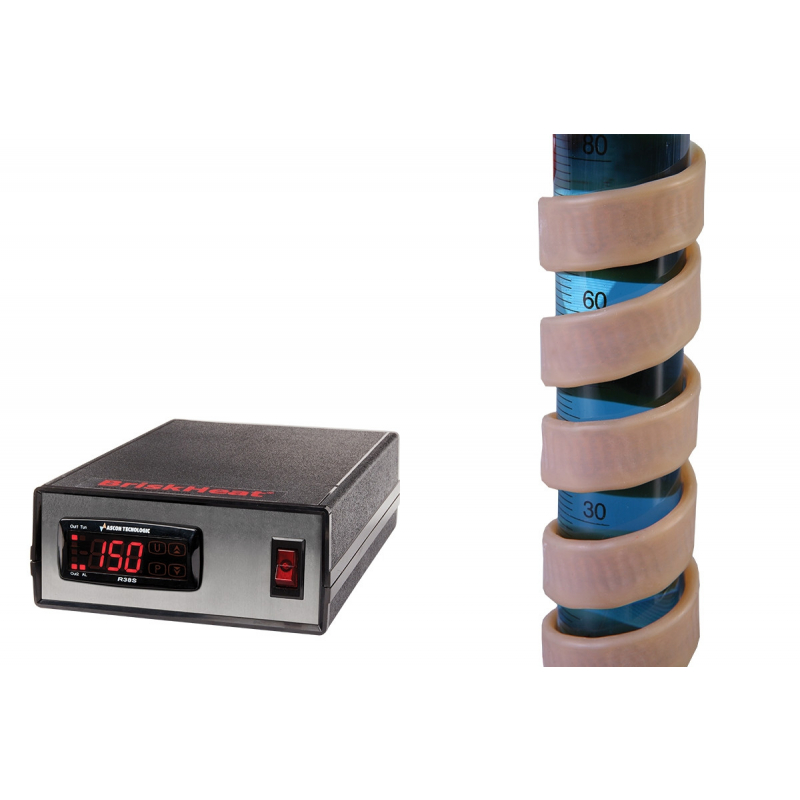

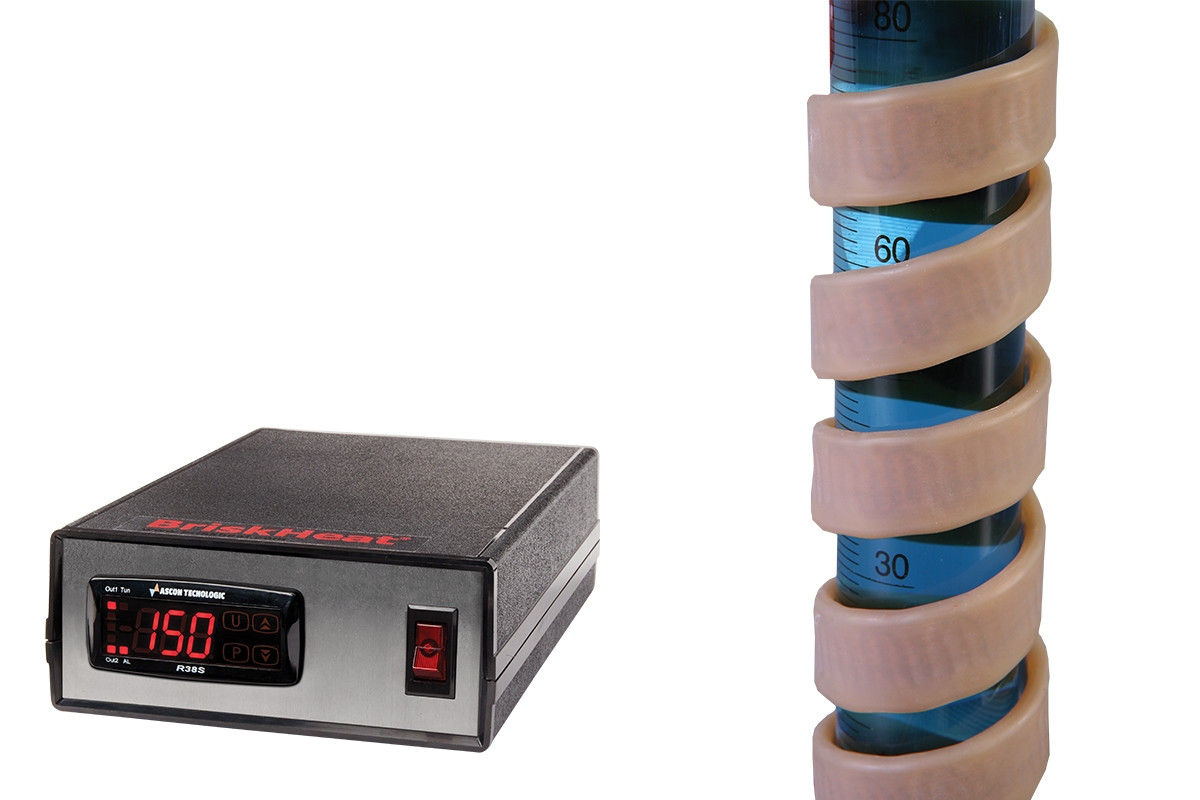

Silicone Rubber Heating Tapes with PID Temperature Controller

    Save money by ordering these heaters and temperature controllers together

    Flexible design and high temperature capability of XtremeFLEX® Silicone Rubber Heating Tapes with a PID temperature controller.

    $590,85
    Add to wishlist
    Under the order

    Silicone Rubber Heating Tapes (BS0)

    The flexible design and high temperature capability of XtremeFLEX® Silicone Rubber Heating Tapes provide an ideal heating tape solution for both flat and/or curved surface heating. Heating tapes can be used on any surface or body requiring fast and efficient direct contact heating, up to temperatures of 450°F (232°C).

    • Extremely flexible silicone rubber heating tape with maximum exposure temperature up to 450°F (232°C).
    • Moisture and chemical resistant.
    • Multi-stranded resistance wire heating element provides exceptional flexibility and durability.
    • Rapid thermal response provides accurate heat when you need it.
    • Available in a wide variety of length and width configurations.
    • Ideal for laboratory heating applications for apparatus, gas tubing, temporary heat, valves, and more.
    • Safe for use with glass and electrically conductive metal surfaces.
    • Temperature controller is required for safe operation of this product.
    • Built-in split-plug design easily connects to your choice of temperature controlling device (120V models).

    SDX Digital Benchtop Temperature Controller

    • 4-Key touch pad interface
    • Advanced PID control
    • Programmable for On/Off Control
    • Indoor use
    • Plug & Play design
    • Power On/Off button
    • Power cord plugs and sensors to meet individual needs
    • Programmable in both °F and °C
    • Includes C14 Plug for wiring to heater
    • Benchtop design

    Silicone Rubber Heating Tapes (BS0)

    • Maximum exposure temperature: 450°F (232°C)
    • Construction:
      • Fiberglass knit and braided heating element
      • Silicone rubber extruded outer sheath
    • Power density:
      • Standard:4.3 W/in2 (0.007 W/mm2 )
    • 24" (610mm) power leads with:
      • 120VAC: Separable standard 2-prong power plug (NEMA 1-15)
      • 240VAC: Bare wire connection
      • Ingress Protection Rating: IP66



    SDX Digital Benchtop Temperature Controller

    • Voltage: 100 – 240 VAC
    • Max. Amp Load: 15 Amp North America; 10 Amp Europe
    • Temperature Control Range: 0°F to 999°F and 0°C to 999°C
    • Temperature Display Units: °F and °C
    • Sensor, 5 ft (1.5 m) included: Type-J or Type-K Thermocouple, or PT100-RTD
    • Accuracy: +/-0.5% span +/- 1 digit at 77°F (25°C)
    • Alarms: Audible; Programmable for high or low absolute, or deviation
    • Input Power Cord/Connections: 79 in (2 m) long with input power plug based on model
    • Output Power Cord/Connection: C13 receptacle with mating C14 plug
    • Special Features: Digital PID with Autotuning
    • Environmental Exposures:
      • Operating range: 32°F to 111°F (0°C to 44°C)
      • Storage range: -4°F to 158°F (-20°C to 70°C)
      • Relative humidity: < 95% non-condensing temperatures
    • Enclosure Dimensions:
      • 6.4 in x 2.6 in x 9.5 in
      • (162 mm x 66 mm x 241 mm)
    • Enclosure Rating/Classification Designation:
      NEMA1; IP30
    Part number voltage wattage Sensor type Length Power plug type Price
    SDXJA-BS0051120L 120 313 J-Type Thermocouple 12 ft (3.7 m) NEMA 5-15 $641,2
    SDXKA-BS0051120L 120 313 K-Type Thermocouple 12 ft (3.7 m) NEMA 5-15 $641,2
    SDXRA-BS0051120L 120 313 PT100/RTD 12 ft (3.7 m) NEMA 5-15 $641,2
    SDXJA-BS0051060L 120 156 J-Type Thermocouple 6 ft (1.8 m) NEMA 5-15 $607
    SDXKA-BS0051060L 120 156 K-Type Thermocouple 6 ft (1.8 m) NEMA 5-15 $607
    SDXRA-BS0051060L 120 156 PT100/RTD 6 ft (1.8 m) NEMA 5-15 $607
    SDXJA-BS0101200L 120 1075 J-Type Thermocouple 20 ft (6.1 m) NEMA 5-15 $810,3
    SDXKA-BS0101200L 120 1075 K-Type Thermocouple 20 ft (6.1 m) NEMA 5-15 $810,3
    SDXRA-BS0101200L 120 1075 PT100/RTD 20 ft (6.1 m) NEMA 5-15 $810,3
    SDXJA-BS0101140L 120 731 J-Type Thermocouple 14 ft (4.3 m) NEMA 5-15 $750,45
    SDXKA-BS0101140L 120 731 K-Type Thermocouple 14 ft (4.3 m) NEMA 5-15 $750,45
    SDXRA-BS0101140L 120 731 PT100/RTD 14 ft (4.3 m) NEMA 5-15 $750,45
    SDXJA-BS0101080L 120 418 J-Type Thermocouple 8 ft (2.4 m) NEMA 5-15 $686,8
    SDXKA-BS0101080L 120 418 K-Type Thermocouple 8 ft (2.4 m) NEMA 5-15 $686,8
    SDXRA-BS0101080L 120 418 PT100/RTD 8 ft (2.4 m) NEMA 5-15 $686,8
    SDXJA-BS0101020L 120 104 J-Type Thermocouple 2 ft (0.6 m) NEMA 5-15 $607
    SDXKA-BS0101020L 120 104 K-Type Thermocouple 2 ft (0.6 m) NEMA 5-15 $607
    SDXRA-BS0101020L 120 104 PT100/RTD 2 ft (0.6 m) NEMA 5-15 $607
    SDXJA-BS0051080L 120 209 J-Type Thermocouple 8 ft (2.4 m) NEMA 5-15 $627,9
    SDXKA-BS0051080L 120 209 K-Type Thermocouple 8 ft (2.4 m) NEMA 5-15 $627,9
    SDXRA-BS0051080L 120 209 PT100/RTD 8 ft (2.4 m) NEMA 5-15 $627,9
    SDXJA-BS0051020L 120 52 J-Type Thermocouple 2 ft (0.6 m) NEMA 5-15 $590,85
    SDXKA-BS0051020L 120 52 K-Type Thermocouple 2 ft (0.6 m) NEMA 5-15 $590,85
    SDXRA-BS0051020L 120 52 PT100/RTD 2 ft (0.6 m) NEMA 5-15 $590,85
    SDXJA-BS0101160L 120 836 J-Type Thermocouple 16 ft (4.9 m) NEMA 5-15 $767,55
    SDXKA-BS0101160L 120 836 K-Type Thermocouple 16 ft (4.9 m) NEMA 5-15 $767,55
    SDXRA-BS0101160L 120 836 PT100/RTD 16 ft (4.9 m) NEMA 5-15 $767,55
    SDXJA-BS0101100L 120 522 J-Type Thermocouple 10 ft (3.0 m) NEMA 5-15 $700,1
    SDXKA-BS0101100L 120 522 K-Type Thermocouple 10 ft (3.0 m) NEMA 5-15 $700,1
    SDXRA-BS0101100L 120 522 PT100/RTD 10 ft (3.0 m) NEMA 5-15 $700,1
    SDXJA-BS0101040L 120 209 J-Type Thermocouple 4 ft (1.2 m) NEMA 5-15 $639,3
    SDXKA-BS0101040L 120 209 K-Type Thermocouple 4 ft (1.2 m) NEMA 5-15 $639,3
    SDXRA-BS0101040L 120 209 PT100/RTD 4 ft (1.2 m) NEMA 5-15 $639,3
    SDXJA-BS0051100L 120 261 J-Type Thermocouple 10 ft (3.0 m) NEMA 5-15 $633,6
    SDXKA-BS0051100L 120 261 K-Type Thermocouple 10 ft (3.0 m) NEMA 5-15 $633,6
    SDXRA-BS0051100L 120 261 PT100/RTD 10 ft (3.0 m) NEMA 5-15 $633,6
    SDXJA-BS0051040L 120 104 J-Type Thermocouple 4 ft (1.2 m) NEMA 5-15 $601,3
    SDXKA-BS0051040L 120 104 K-Type Thermocouple 4 ft (1.2 m) NEMA 5-15 $601,3
    SDXRA-BS0051040L 120 104 PT100/RTD 4 ft (1.2 m) NEMA 5-15 $601,3
    SDXJA-BS0101180L 120 940 J-Type Thermocouple 18 ft (5.5 m) NEMA 5-15 $793,2
    SDXKA-BS0101180L 120 940 K-Type Thermocouple 18 ft (5.5 m) NEMA 5-15 $793,2
    SDXRA-BS0101180L 120 940 PT100/RTD 18 ft (5.5 m) NEMA 5-15 $793,2
    SDXJA-BS0101120L 120 627 J-Type Thermocouple 12 ft (3.7 m) NEMA 5-15 $723,85
    SDXKA-BS0101120L 120 627 K-Type Thermocouple 12 ft (3.7 m) NEMA 5-15 $723,85
    SDXRA-BS0101120L 120 627 PT100/RTD 12 ft (3.7 m) NEMA 5-15 $723,85
    SDXJA-BS0101060L 120 313 J-Type Thermocouple 6 ft (1.8 m) NEMA 5-15 $656,4
    SDXKA-BS0101060L 120 313 K-Type Thermocouple 6 ft (1.8 m) NEMA 5-15 $656,4
    SDXRA-BS0101060L 120 313 PT100/RTD 6 ft (1.8 m) NEMA 5-15 $656,4
