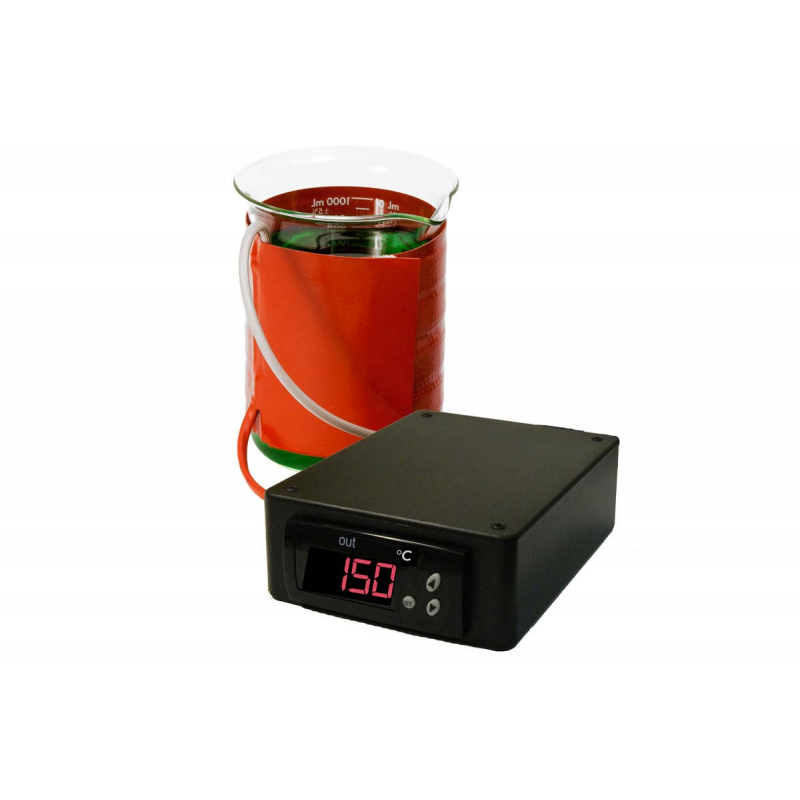

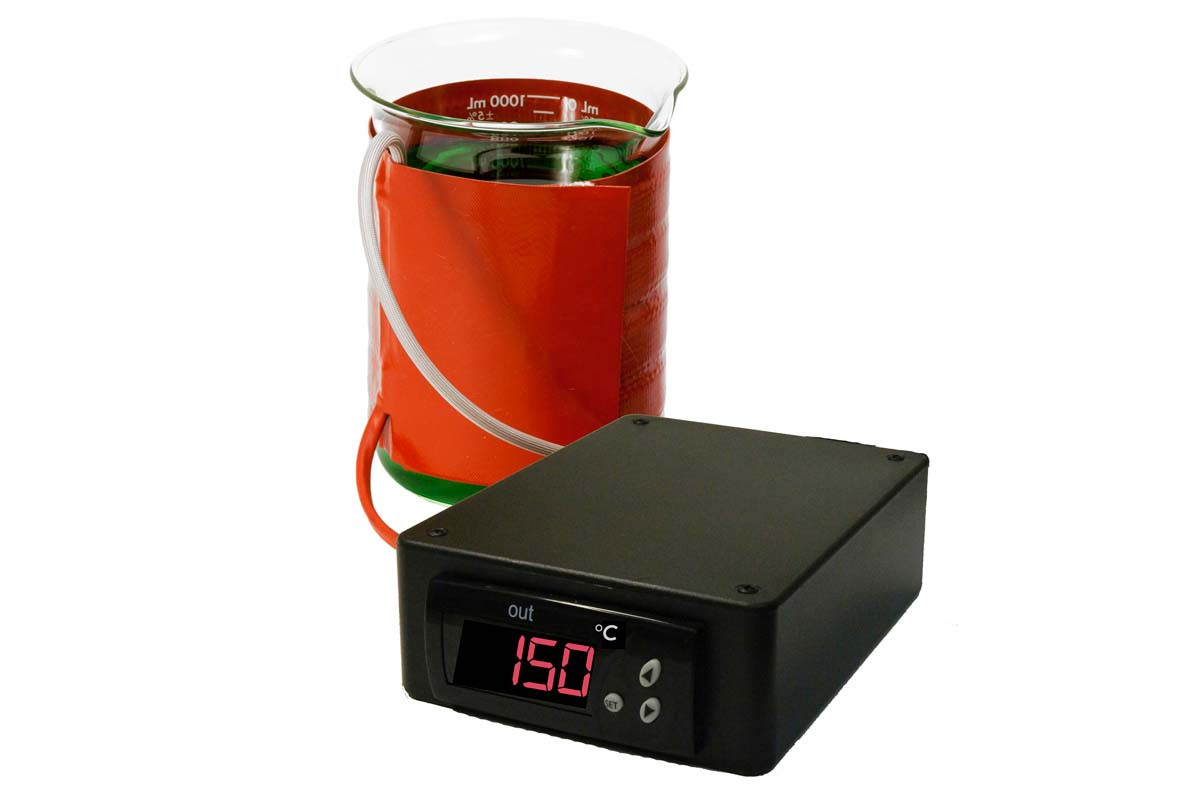

Silicone Rubber Griffin Beaker Heaters (GBH) with SDC Temperature Controller Bundles
Value-Priced Bundles: Save $10 by ordering these heaters and temperature controllers together
- Ideal for Laboratory and Oil Bath Applications
- Provides even heat for Griffin and standard beaker heating applications
- Removable with hook and loop fastener. Easy-access to graduation
- Moisture and chemical resistant. No need to worry about spills.
$343
Under the order
Value-Priced Bundles: Save $10 by ordering these heaters and temperature controllers together
- Ideal for Laboratory and Oil Bath Applications
- Provides even heat for Griffin and standard beaker heating applications
- Removable with hook and loop fastener. Easy-access to graduation
- Moisture and chemical resistant. No need to worry about spills.
- Maximum exposure temperature: 232oC (450oF).
- 120 or 240VAC
- Power density: 5.0 watts/in2 (0.008 watts/mm2)
- Heating element is laminated between two layers of 15mil fiberglass reinforced silicone rubber
- Moisture, chemical, and radiation resistant
- Dielectric strength of over 2000 volts
- 24" (610mm) long power leads with
- 120VAC: Standard 2-prong plug (NEMA 1-15)
- 240VAC: Bare wire connection
- Requires a temperature or power controller
Standard Sizes
|
Size ml |
Diameter in (mm) |
Heater Height in (mm) |
Heater Width in (mm) |
|
250 |
2.7 (69) |
3.0 (76) |
12.25 (311) |
|
400 |
3.0 (76) |
3.5 (89) |
13.75 (349) |
|
600 |
3.6 (91) |
4.0 (102) |
15.00 (381) |
|
1000 |
4.3 (109) |
4.6 (117) |
17.25 (438) |
Need a different size or have a different object to heat? We can design a heater specifically for your application. Contact us or your local distributor for application assistance.
| Part number | Price | |
|---|---|---|
| $343 | ||
| $348 | ||
| $345 | ||
| $348 | ||
| $343 | ||
| $344 | ||
| $344 | ||
| $348 | ||
| $343 | ||
| $344 | ||
| $345 | ||
| $345 | ||
| $343 | ||
| $344 | ||
| $345 | ||
| $348 |
