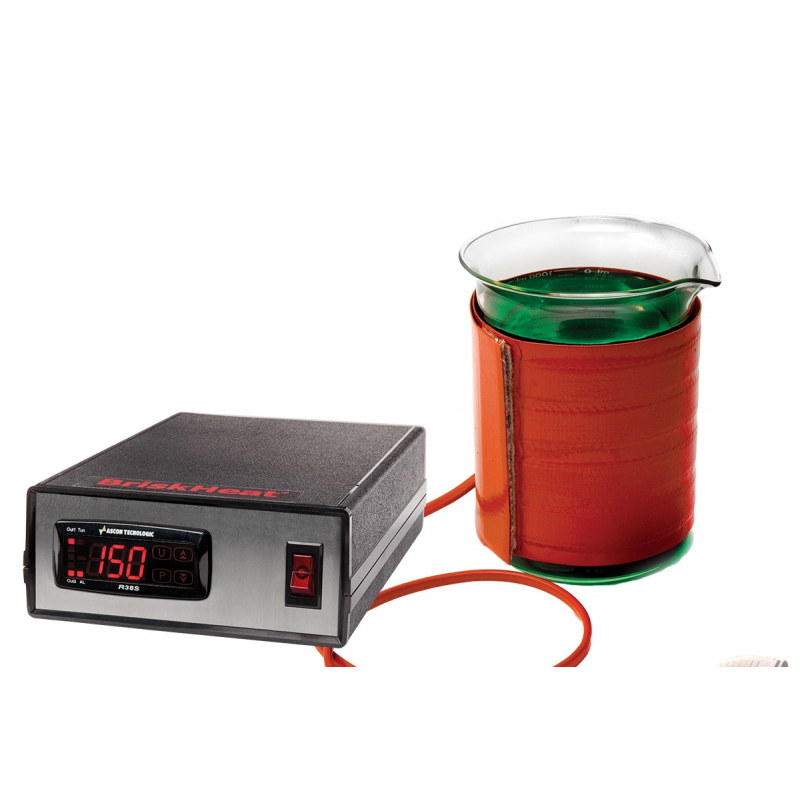

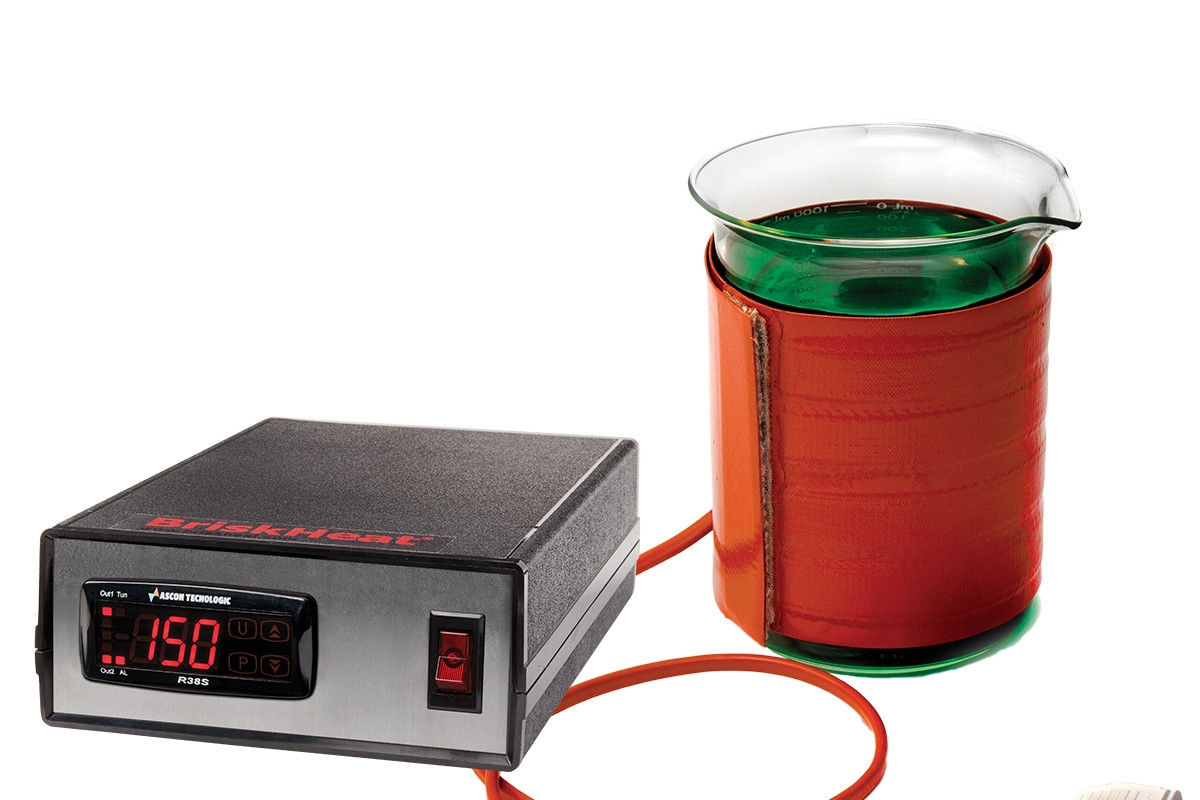

Silicone Griffin Beaker Heater (GBH) with PID Temperature Controller (SDX)
Value-Priced Bundles: Save Money by ordering these heaters and temperature controllers together
- Ideal for Laboratory and Oil Bath Applications
- More Control with PID Temperature Controller
- Provides even heat for Griffin and standard beaker heating applications
- Removable with hook and loop fastener. Easy-access to graduation
- Moisture and chemical resistant. No need to worry about spills.
$601,3
Under the order
Silicone Rubber Griffin Beaker Heaters
- Ideal for Laboratory and Oil Bath Applications
- Fits Griffin and standard size beakers
- Provides even heat for Griffin and standard beaker heating applications
- Removable with hook and loop fastener. Easy-access to graduation
- Moisture and chemical resistant. No need to worry about spills.
SDX Digital Benchtop Temperature Controller
- 4-Key touch pad interface
- Advanced PID control
- Programmable for On/Off Control
- Indoor use
- Plug & Play design
- Power On/Off button
- Power cord plugs and sensors to meet individual needs
- Programmable in both °F and °C
- Includes C14 Plug for wiring to heater
- Benchtop design
Silicone Rubber Griffin Beaker Heater
- Maximum exposure temperature: 232oC (450oF).
- 120 or 240VAC
- Power density: 5.0 watts/in2 (0.008 watts/mm2)
- Heating element is laminated between two layers of 15mil fiberglass reinforced silicone rubber
- Moisture, chemical, and radiation resistant
- Dielectric strength of over 2000 volts
- 24" (610mm) long power leads with
- 120VAC: Standard 2-prong plug (NEMA 1-15)
- 240VAC: Bare wire connection
- Requires a temperature or power controller
SDX Digital Benchtop Temperature Controller
- Voltage: 100 – 240 VAC
- Max. Amp Load: 15 Amp North America; 10 Amp Europe
- Temperature Control Range: 0°F to 999°F and 0°C to 999°C
- Temperature Display Units: °F and °C
- Sensor, 5 ft (1.5 m) included: Type-J or Type-K Thermocouple, or PT100-RTD
- Accuracy: +/-0.5% span +/- 1 digit at 77°F (25°C)
- Alarms: Audible; Programmable for high or low absolute, or deviation
- Input Power Cord/Connections: 79 in (2 m) long with input power plug based on model
- Output Power Cord/Connection: C13 receptacle with mating C14 plug
- Special Features: Digital PID with Autotuning
- Environmental Exposures:
- Operating range: 32°F to 111°F (0°C to 44°C)
- Storage range: -4°F to 158°F (-20°C to 70°C)
- Relative humidity: < 95% non-condensing temperatures
- Enclosure Dimensions:
- 6.4 in x 2.6 in x 9.5 in
- (162 mm x 66 mm x 241 mm)
- Enclosure Rating/Classification Designation:
NEMA1; IP30
| Part number | voltage | wattage | Sensor type | Power plug type | Price | |
|---|---|---|---|---|---|---|
| SDXRA-GBH0400-1 | 120 | 200 | PT100/RTD | NEMA 5-15 | $602,25 | |
| SDXKA-GBH0600-1 | 120 | 250 | K-Type Thermocouple | NEMA 5-15 | $603,2 | |
| SDXJA-GBH1000-1 | 120 | 350 | J-Type Thermocouple | NEMA 5-15 | $606,05 | |
| SDXJA-GBH0250-1 | 120 | 150 | J-Type Thermocouple | NEMA 5-15 | $601,3 | |
| SDXRA-GBH0600-1 | 120 | 250 | PT100/RTD | NEMA 5-15 | $603,2 | |
| SDXKA-GBH1000-1 | 120 | 350 | K-Type Thermocouple | NEMA 5-15 | $606,05 | |
| SDXKA-GBH0250-1 | 120 | 150 | K-Type Thermocouple | NEMA 5-15 | $601,3 | |
| SDXJA-GBH0400-1 | 120 | 200 | J-Type Thermocouple | NEMA 5-15 | $602,25 | |
| SDXRA-GBH1000-1 | 120 | 350 | PT100/RTD | NEMA 5-15 | $606,05 | |
| SDXRA-GBH0250-1 | 120 | 150 | PT100/RTD | NEMA 5-15 | $601,3 | |
| SDXKA-GBH0400-1 | 120 | 200 | K-Type Thermocouple | NEMA 5-15 | $602,25 | |
| SDXJA-GBH0600-1 | 120 | 250 | J-Type Thermocouple | NEMA 5-15 | $603,2 |
