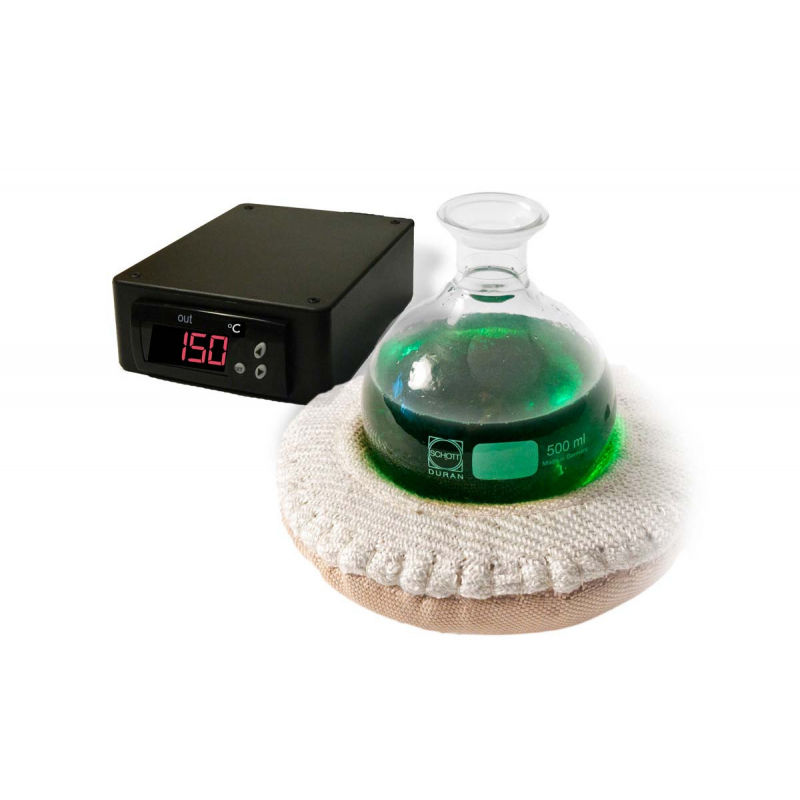

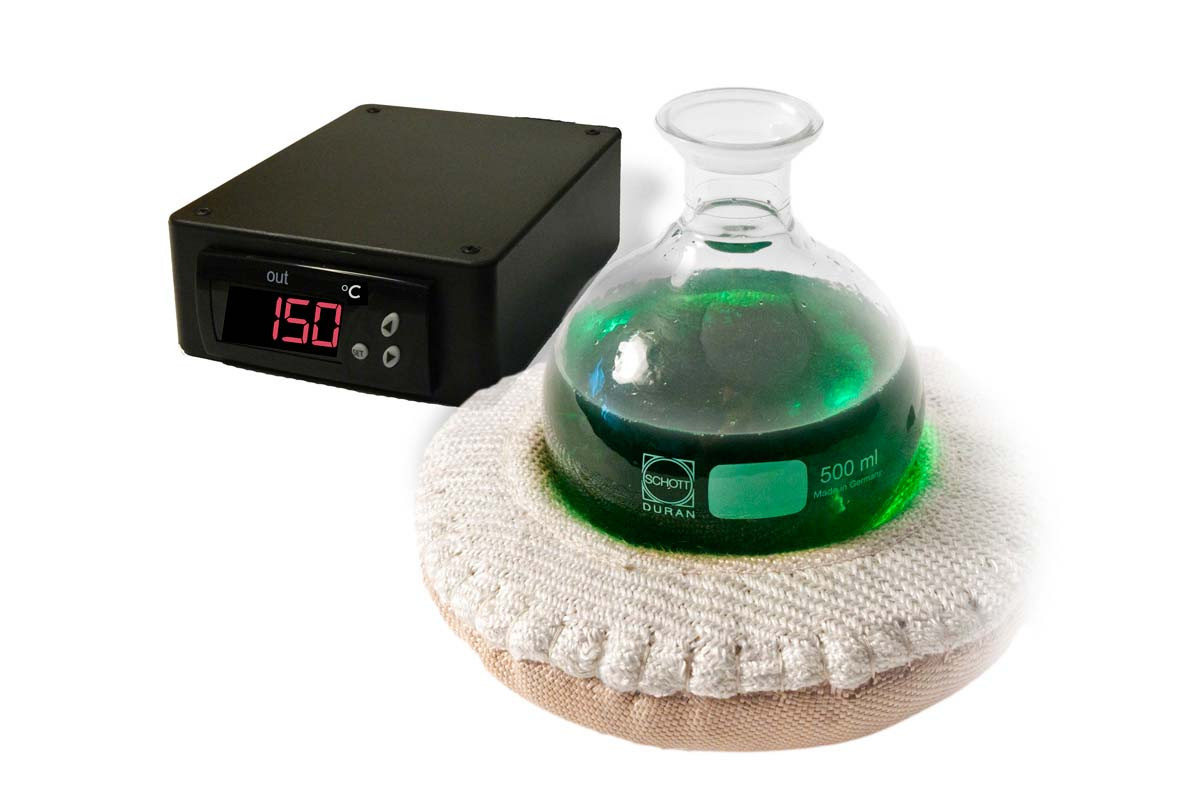

Lower Hemispherical Heating Mantles (HM) with SDC Bundle

    • Special bundle price
    • Apply uniform heat to round-bottom flasks
    • Excellent alternative to other heating methods like a Bunsen burner
    • Ideal for use with a basket ring stand
    $371
    Add to wishlist
    Under the order
    • Special bundle price
    • Apply uniform heat to round-bottom flasks
    • Excellent alternative to other heating methods like a Bunsen burner
    • Ideal for use with a basket ring stand

    Lower Hemispherical Heating Mantle

    • Uniform, low-watt density heating element
    • Maximum exposure temperature: 450°C (842°F)
    • Fiberglass cloth outer shell

    SDC Benchtop Digital Temperature Controller

    • Compact, digital on / off temperature controller
    • Easy programming (°C or °F)
    • Temperature control range: 0- 600°C or 32-999°F
    • Compatible with a wide range of heaters and applications
    • 10 amp fused output
    • Includes built-in thermocouple (J or K Type)

    Bundles include:

    1. Standard SDC Benchtop temperature controller (120VAC) with built-in 5' (1.5m) long J-Type or K-Type thermocouple sensor (see ordering information)
    2. Lower Hemispherical Heating Mantle

    Note: Heater with different voltage, size, or wattage (Contact us for detailed quotation)

    Lower Hemispherical Heating Mantle

    • Fiberglass cloth outer shell
    • Uniform, low-watt density knitted and braided heating element. Temperatures up to 900oF (482oC).
    • Multi-stranded resistance wire for increased durability and flexibility
    • 120VAC model includes 3" (76mm) lead wire with NEMA L1-15R connector and a 4 foot (1.2m) power cord with NEMA 1-15 plug
    • 240VAC model includes 3" (76mm) lead wire with no plug
    • Temperature controller required

    SDC Benchtop Digital Temperature Controller

    • Small Unit Size:
      • 5.5 in L x 4.25 in W x 1.75 in H
      • 140 mm L x 108 mm W x 45 mm H
    • On-Off control
    • Temperature Control Range: 32-999°F (°F models) or 0-700°C (°C models)
      • Accuracy: +/- 1% FS
    • Includes J-type or K-type thermocouple sensor
      • 5-foot (1.5 m) factory installed
    • 120 VAC or 240 VAC power input
    • Relay output rated for 10A @ 240VAC
    • Sensor break options
    • Upper and lower limits of the setpoint can be adjusted
    • Set-point value can be adjusted by using single key
    • Hysteresis adjustable between 1 and 99°F/°C
    • Exposure Temperature: 32-158°F (0-70°C)
      • 80% humidity non-condensing
    • 5-foot (1.5 m) input power cord
      • 120VAC unit = NEMA 5-15 plug
      • 240VAC unit = NEMA 6-15 plug
    • 5-foot (1.5 m) output power cord
      • 120VAC unit = NEMA 5-15R receptacle
      • 240VAC unit = NEMA 6-15R receptacle
    • Internal buzzer for alarm condition / error

    * Other plug receptacle options available contact us for more information

    Part number Size voltage wattage TEMPERATURE CONTROL RANGE Sensor type Price
    SDCJCA-HM0125-HS1 125 ml 120 80 Up to 482°C J-Type $430
    SDCKFA-HM3000-HS1 3000 ml 120 500 Up to 900°F K-Type $460
    SDCJFA-HM5000-HS1 5000 ml 120 600 Up to 900°F J-Type $591
    SDCKFA-HM0500-HS1 500 ml 120 270 Up to 900°F K-Type $397
    SDCJFA-HM1000-HS1 1000 ml 120 380 Up to 900°F J-Type $472
    SDCKFA-HM0125-HS1 125 ml 120 80 Up to 900°F K-Type $387
    SDCKCA-HM3000-HS1 3000 ml 120 500 Up to 482°C K-Type $460
    SDCJFA-HM0200-HS1 200 ml 120 100 Up to 900°F J-Type $434
    SDCJCA-HM5000-HS1 500 ml 120 600 Up to 482°C J-Type $591
    SDCKCA-HM0500-HS1 500 ml 120 270 Up to 482°C K-Type $397
    SDCJFA-HM0050-HS1 50 ml 120 60 Up to 900°F J-Type $408
    SDCJCA-HM1000-HS1 1000 ml 120 380 Up to 482°C J-Type $472
    SDCKCA-HM0125-HS1 125 ml 120 80 Up to 482°C K-Type $387
    SDCJCA-HM0200-HS1 200 ml 120 100 Up to 482°C J-Type $434
    SDCKFA-HM5000-HS1 5000 ml 120 600 Up to 900°F K-Type $508
    SDCJCA-HM0050-HS1 50 ml 120 60 Up to 482°C J-Type $408
    SDCKFA-HM1000-HS1 1000 ml 120 380 Up to 900°F K-Type $419
    SDCJFA-HM2000-HS1 2000 ml 120 500 Up to 900°F J-Type $499
    SDCKFA-HM0200-HS1 200 ml 120 100 Up to 900°F K-Type $390
    SDCKCA-HM5000-HS1 5000 ml 120 600 Up to 482°C K-Type $508
    SDCJFA-HM0250-HS1 250 ml 120 180 Up to 900°F J-Type $436
    SDCKFA-HM0050-HS1 50 ml 120 60 Up to 900°F K-Type $371
    SDCKCA-HM1000-HS1 100 ml 120 380 Up to 482°C K-Type $419
    SDCJFA-HM0100-HS1 100 ml 120 80 Up to 900°F J-Type $427
    SDCJCA-HM2000-HS1 200 ml 120 500 Up to 482°C J-Type $499
    SDCKCA-HM0200-HS1 200 ml 120 100 Up to 482°C K-Type $390
    SDCJCA-HM0250-HS1 250 ml 120 180 Up to 482°C J-Type $436
    SDCKCA-HM0050-HS1 50 ml 120 60 Up to 482°C K-Type $371
    SDCJCA-HM0100-HS1 100 ml 120 80 Up to 482°C J-Type $427
    SDCKFA-HM2000-HS1 2000 ml 120 500 Up to 900°F K-Type $439
    SDCJFA-HM3000-HS1 3000 ml 120 500 Up to 900°F J-Type $527
    SDCKFA-HM0250-HS1 250 ml 120 180 Up to 900°F K-Type $392
    SDCJFA-HM0500-HS1 500 ml 120 270 Up to 900°F J-Type $443
    SDCKFA-HM0100-HS1 100 ml 120 80 Up to 900°F K-Type $385
    SDCKCA-HM2000-HS1 2000 ml 120 500 Up to 482°C K-Type $439
    SDCJFA-HM0125-HS1 125 ml 120 80 Up to 900°F J-Type $430
    SDCJCA-HM3000-HS1 3000 ml 120 500 Up to 482°C J-Type $527
    SDCKCA-HM0250-HS1 250 ml 120 180 Up to 482°C K-Type $392
    SDCJCA-HM0500-HS1 500 ml 120 270 Up to 482°C J-Type $443
    SDCKCA-HM0100-HS1 100 ml 120 80 Up to 482°C K-Type $385
