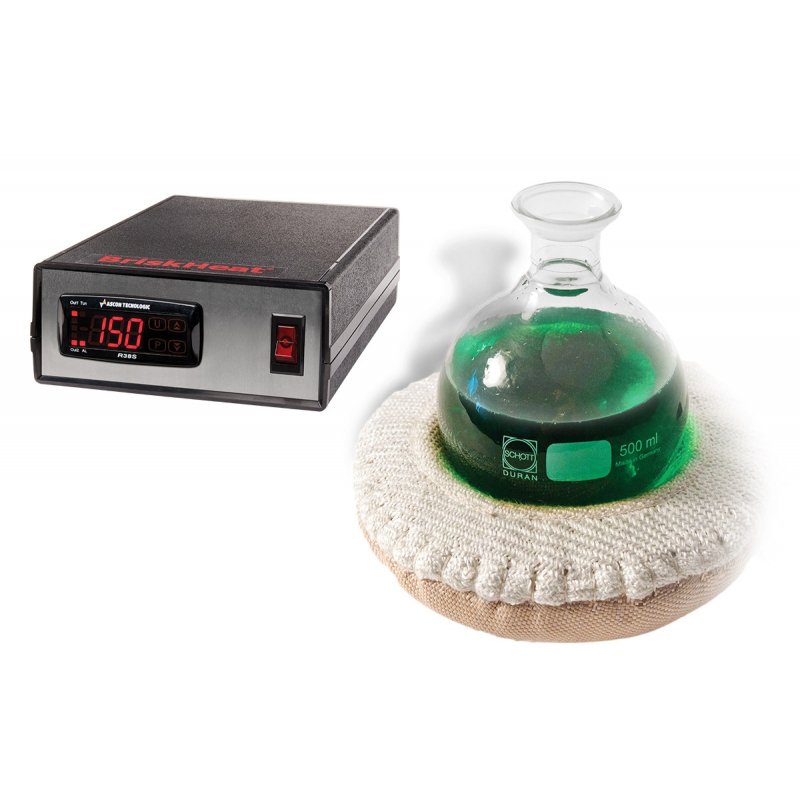

Lower Hemispherical Heating Mantles (HM) with PID Temperature Controller (SDX)

Lower Hemispherical Heating Mantle

• Fiberglass cloth outer shell
• Uniform, low-watt density knitted and braided heating element. Temperatures up to 900oF (482oC).
• Multi-stranded resistance wire for increased durability and flexibility
• 120VAC model includes 3" (76mm) lead wire with NEMA L1-15R connector and a 4 foot (1.2m) power cord with NEMA 1-15 plug
• 240VAC model includes 3" (76mm) lead wire with no plug
• Temperature controller required

SDX Digital Benchtop Temperature Controller

• Voltage: 100 – 240 VAC
• Max. Amp Load: 15 Amp North America; 10 Amp Europe
• Temperature Control Range: 0°F to 999°F and 0°C to 999°C
• Temperature Display Units: °F and °C
• Sensor, 5 ft (1.5 m) included: Type-J or Type-K Thermocouple, or PT100-RTD
• Accuracy: +/-0.5% span +/- 1 digit at 77°F (25°C)
• Alarms: Audible; Programmable for high or low absolute, or deviation
• Input Power Cord/Connections: 79 in (2 m) long with input power plug based on model
• Output Power Cord/Connection: C13 receptacle with mating C14 plug
• Special Features: Digital PID with Autotuning
• Environmental Exposures:
• Operating range: 32°F to 111°F (0°C to 44°C)
• Storage range: -4°F to 158°F (-20°C to 70°C)
• Relative humidity: < 95% non-condensing temperatures
• Enclosure Dimensions:
• 6.4 in x 2.6 in x 9.5 in
• (162 mm x 66 mm x 241 mm)
• Enclosure Rating/Classification Designation:
  NEMA1; IP30
