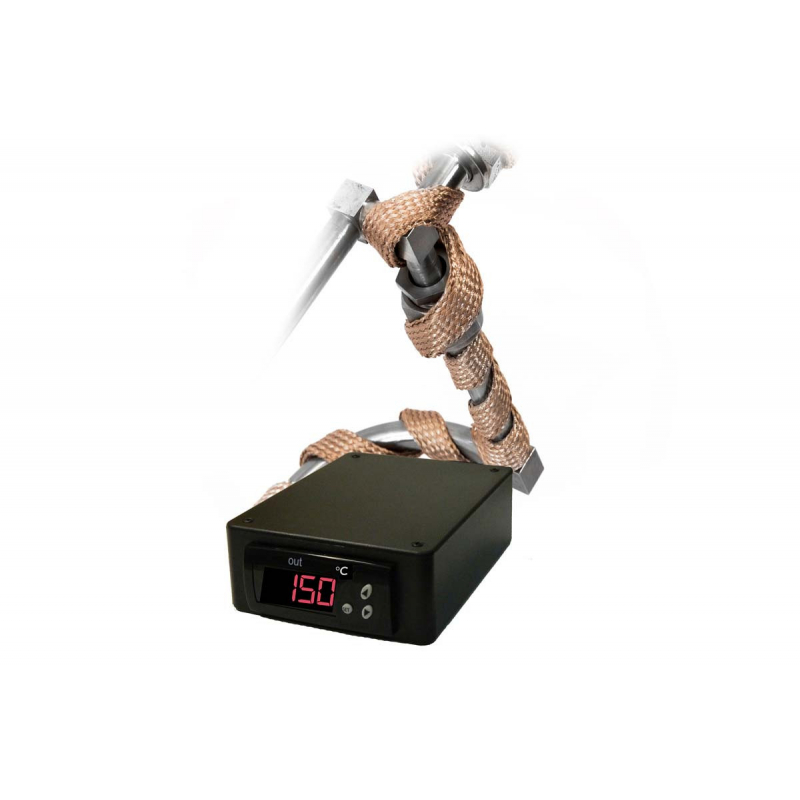

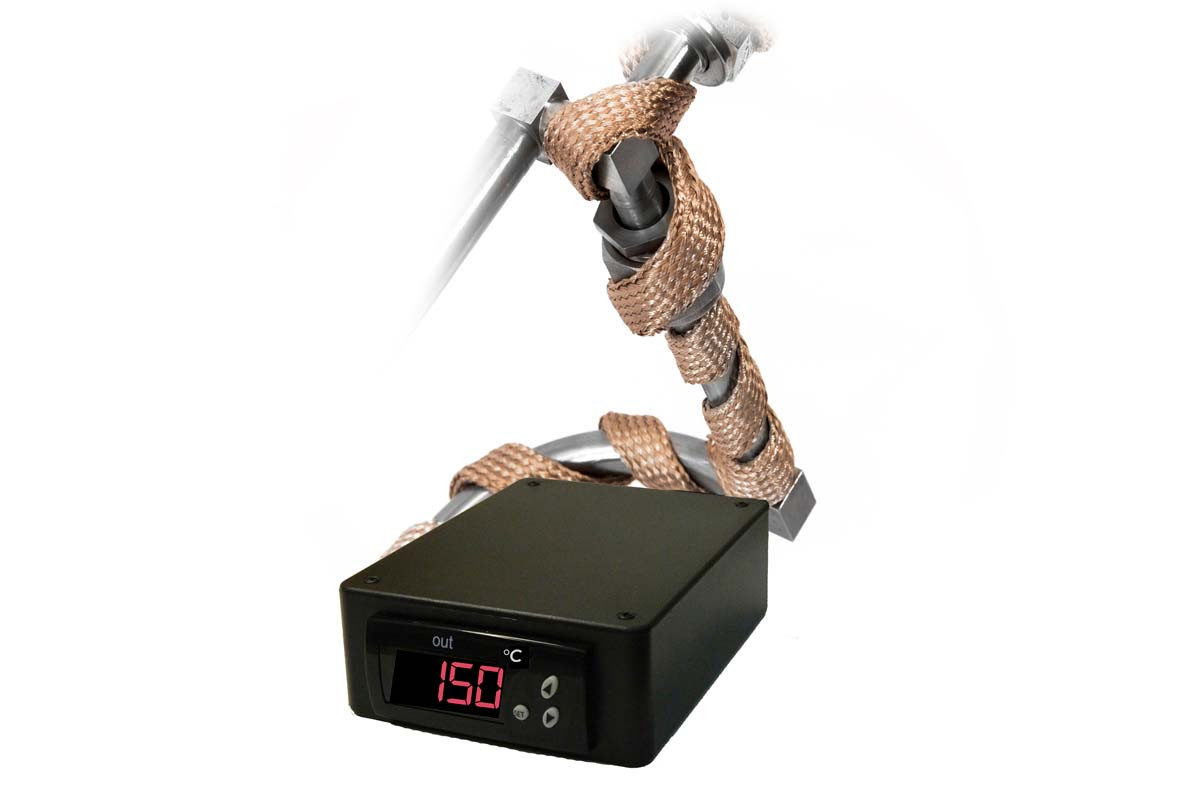

High Temperature Heavy Insulated Heating Tapes (BWH) With SDC Temperature Controller Bundle

High Wattage Heavy Insulated Heating Tapes (BWH) With SDC Temperature Controller Bundle

$309,6
Add to wishlist
Under the order
Value-Priced Bundles: Save $10 by ordering these heaters and temperature controllers together
  • High-Wattage heating tape with maximum exposures temperatures
    • Removable & Reusable Use: Up to 572°F (300°C)
    • Single Install Use: Up to 932°F (500°C)
  • Multi-stranded resistance wire heating element provides exceptional flexibility and durability.
  • Samox® outer sheath provides electrical insulation for safe use with electrically conductive surfaces.
  • Rapid thermal response provides accurate heat when you need it.
  • Available in a wide variety of length and width configurations.
  • Ideal for laboratory heating applications for apparatus, gas tubing, temporary heat, valves, and more.
  • Safe for use with glass and electrically conductive metal surfaces.
  • Choice of power leads on same end or opposite ends to suit your electrical needs.
  • Includes 9" (230mm) long high temperature tie downs for safe and easy installation.
  • Temperature controller is required for safe operation of this product.
  • Built-in split-plug design easily connects to your choice of temperature controlling device.
  • Maximum exposure temperature:
    • Removable & Reusable Use: Up to 572°F (300°C)
    • Single Install Use: Up to 932°F (500°C)
  • Construction:
    • Samox® knit and braided heating element
    • Samox® knit and braided outer sheath
  • Power density:
    • Standard: 13.1 W/in2 (0.020 W/mm2 )
    • Wide† : 7.7 W/in2 (0.012 W/mm2)
  • 24" (610mm) power leads with:
    • 120VAC: Separable 2-prong split-plug (NEMA 1-15)
    • 240VAC: Bare wire connection
Part number voltage wattage TEMPERATURE CONTROL RANGE Sensor type Length Price
SDCJFA-BWH051060L 120 470 32°F to 999°F J-Type Thermocouple 6 ft (1.8 m) $342,95
SDCKFA-BWH101020L 120 313 32°F to 999°F K-Type Thermocouple 2 ft (0.6 m) $325,7
SDCKFA-BWH051040L 120 313 32°F to 999°F K-Type Thermocouple 4 ft (1.2 m) $325,7
SDCJCA-BWH101040L 120 627 0°C to 600°C J-Type Thermocouple 4 ft (1.2 m) $348,7
SDCJCA-BWH051060L 120 470 0°C to 600°C J-Type Thermocouple 6 ft (1.8 m) $342,95
SDCKCA-BWH101020L 120 313 0°C to 600°C K-Type Thermocouple 2 ft (0.6 m) $325,7
SDCJFA-BWH101060L 120 940 32°F to 999°F J-Type Thermocouple 6 ft (1.8 m) $376,3
SDCKCA-BWH051040L 120 313 0°C to 600°C K-Type Thermocouple 4 ft (1.2 m) $325,7
SDCJFA-BWH051080L 120 627 32°F to 999°F J-Type Thermocouple 8 ft (2.4 m) $362,5
SDCKFA-BWH101040L 120 627 32°F to 999°F K-Type Thermocouple 4 ft (1.2 m) $348,7
SDCJFA-BWH051020L 120 156 32°F to 999°F J-Type Thermocouple 2 ft (0.6 m) $309,6
SDCKFA-BWH051060L 120 470 32°F to 999°F K-Type Thermocouple 6 ft (1.8 m) $342,95
SDCJCA-BWH101060L 120 940 0°C to 600°C J-Type Thermocouple 6 ft (1.8 m) $376,3
SDCJCA-BWH051080L 120 627 0°C to 600°C J-Type Thermocouple 8 ft (2.4 m) $362,5
SDCKCA-BWH101040L 120 627 0°C to 600°C K-Type Thermocouple 4 ft (1.2 m) $348,7
SDCJCA-BWH051020L 120 156 0°C to 600°C J-Type Thermocouple 2 ft (0.6 m) $309,6
SDCKCA-BWH051060L 120 470 0°C to 600°C K-Type Thermocouple 6 ft (1.8 m) $342,95
SDCJFA-BWH101020L 120 313 32°F to 999°F J-Type Thermocouple 2 ft (0.6 m) $325,7
SDCKFA-BWH101060L 120 940 32°F to 999°F K-Type Thermocouple 6 ft (1.8 m) $376,3
SDCJFA-BWH051040L 120 313 32°F to 999°F J-Type Thermocouple 4 ft (1.2 m) $325,7
SDCKFA-BWH051080L 120 627 32°F to 999°F K-Type Thermocouple 8 ft (2.4 m) $362,5
SDCKFA-BWH051020L 120 156 32°F to 999°F K-Type Thermocouple 2 ft (0.6 m) $309,6
SDCJCA-BWH101020L 120 313 0°C to 600°C J-Type Thermocouple 2 ft (0.6 m) $325,7
SDCKCA-BWH101060L 120 940 0°C to 600°C K-Type Thermocouple 6 ft (1.8 m) $376,3
SDCJCA-BWH051040L 120 313 0°C to 600°C J-Type Thermocouple 4 ft (1.2 m) $325,7
SDCKCA-BWH051080L 120 627 0°C to 600°C K-Type Thermocouple 8 ft (2.4 m) $362,5
SDCJFA-BWH101040L 120 627 32°F to 999°F J-Type Thermocouple 4 ft (1.2 m) $348,7
SDCKCA-BWH051020L 120 156 0°C to 600°C K-Type Thermocouple 2 ft (0.6 m) $309,6
