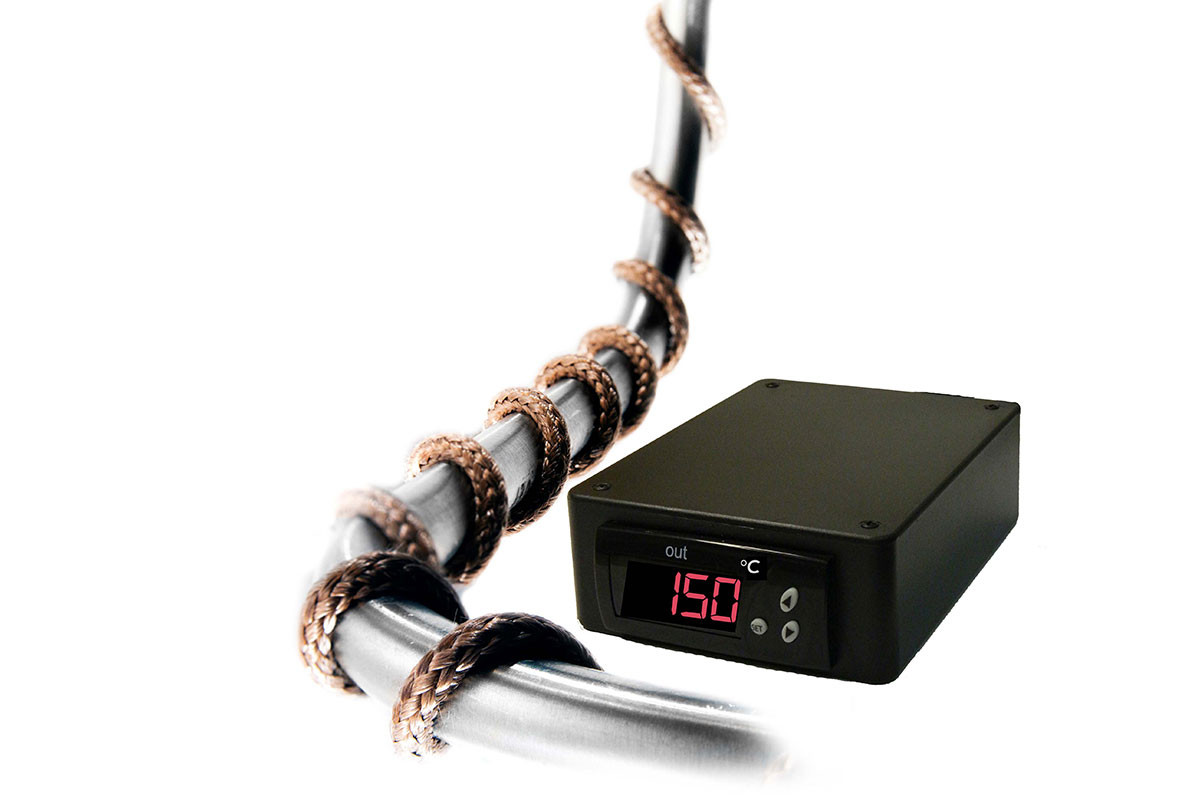

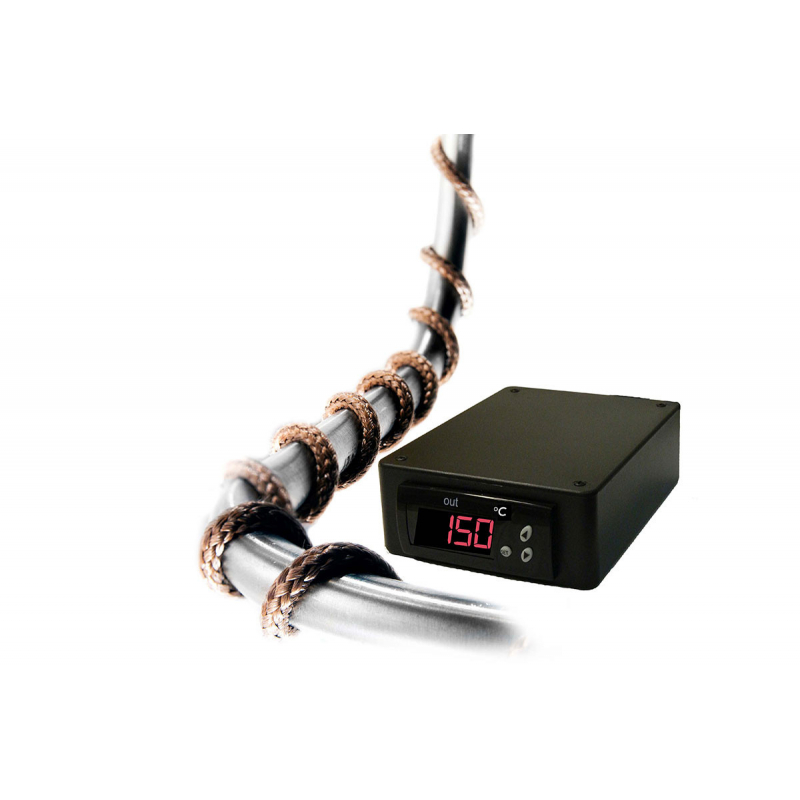

High Temperature Heating Cords (HWC) With SDC Temperature Controller Bundle
High Temperature Heating Cords (HWC) With SDC Temperature Controller Bundle
$338
Under the order
Value-Priced Bundles: Save $10 by ordering these heaters and temperature controllers together
- High-temperature heating cords designed for use on small tubes, vessels, or any application where space is limited and high temperatures are needed.
- Maximum exposure temperature:
- Removable & Reusable Use: Up to 572°F (300°C)
- Single Install Use: Up to 932°F (500°C)
- Extremely flexible heating cords can be wrapped around objects as small as 1/8" (3mm) diameter.
- Rapid thermal response provides accurate heat when you need it.
- Multi-stranded resistance wire heating element provides exceptional flexibility and durability.
- Samox® outer sheath provides electrical insulation for safe use with electrically conductive surfaces.
- Available in a wide variety of length and width configurations.
- Ideal for laboratory, R&D, gas tubing, production, maintenance, temporary heat, and more.
- Safe for use with glass and electrically conductive metal surfaces.
- Choice of power leads on same end or opposite ends to suit your electrical needs.
- Includes 9" (230mm) long high temperature tie downs for safe and easy installation.
- Temperature controller is required for safe operation of this product.
- Built-in split-plug design easily connects to your choice of temperature controlling device.
- Maximum exposure temperature:
- Removable & Reusable Use: Up to 572°F (300°C)
- Single Install Use: Up to 932°F (500°C)
- Diameter: 3/16” (4.8mm)
- Construction:
- Samox® knit and braided heating element
- Samox® knit and braided outer sheath
- Power density:
- Standard: 60 W/in(196 W/m)
- 24" (610mm) power leads with:
- 120VAC: Separable 2-prong split-plug (NEMA 1-15)
- 240VAC: Crimped ferrule wire connection


| Part number | voltage | wattage | TEMPERATURE CONTROL RANGE | Sensor type | Price | |
|---|---|---|---|---|---|---|
| SDCJCA-HWC1040 | 120 | 266 | 0°C to 600°C | J-Type | $338 | |
| SDCJFA-HWC1060 | 120 | 350 | 32°F to 999°F | J-Type | $348 | |
| SDCKCA-HWC1120 | 120 | 750 | 0°C to 600°C | K-Type | $367 | |
| SDCKFA-HWC1180 | 120 | 1000 | 32°F to 999°F | K-Type | $384 | |
| SDCKFA-HWC1040 | 120 | 266 | 32°F to 999°F | K-Type | $338 | |
| SDCJCA-HWC1060 | 120 | 350 | 0°C to 600°C | J-Type | $348 | |
| SDCJFA-HWC1120 | 120 | 750 | 32°F to 999°F | J-Type | $367 | |
| SDCKCA-HWC1180 | 120 | 1000 | 0°C to 600°C | K-Type | $384 | |
| SDCKCA-HWC1040 | 120 | 266 | 0°C to 600°C | K-Type | $338 | |
| SDCKFA-HWC1060 | 120 | 350 | 32°F to 999°F | K-Type | $348 | |
| SDCJCA-HWC1120 | 120 | 750 | 0°C to 600°C | J-Type | $367 | |
| SDCJFA-HWC1180 | 120 | 1000 | 32°F to 999°F | J-Type | $384 | |
| SDCJFA-HWC1040 | 120 | 266 | 32°F to 999°F | J-Type | $338 | |
| SDCKCA-HWC1060 | 120 | 350 | 0°C to 260°C | K-Type | $348 | |
| SDCKFA-HWC1120 | 120 | 750 | 32°F to 999°F | K-Type | $367 | |
| SDCJCA-HWC1180 | 120 | 1000 | 0°C to 600°C | J-Type | $384 |
