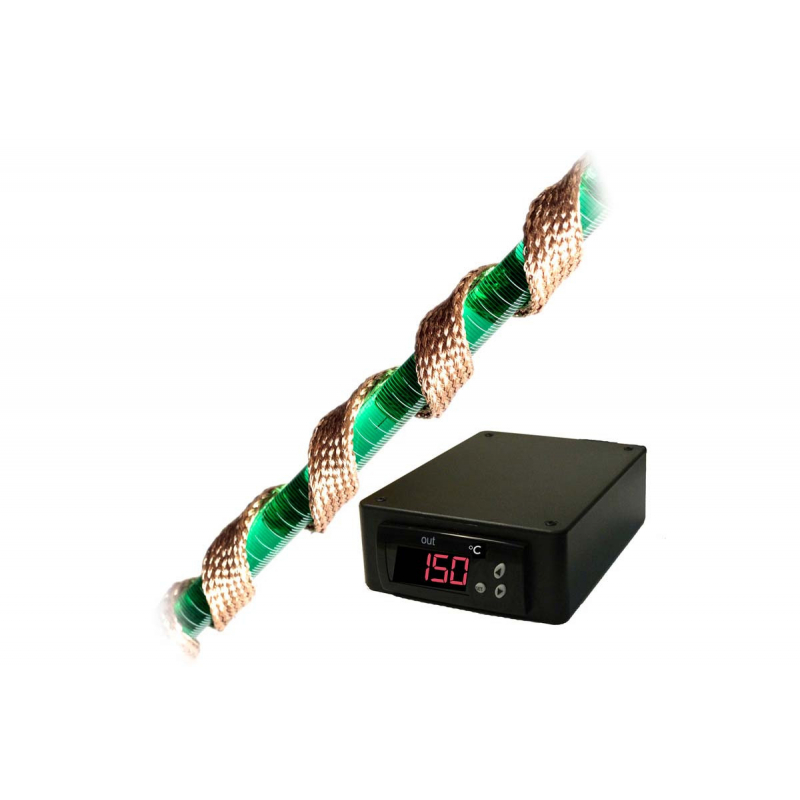

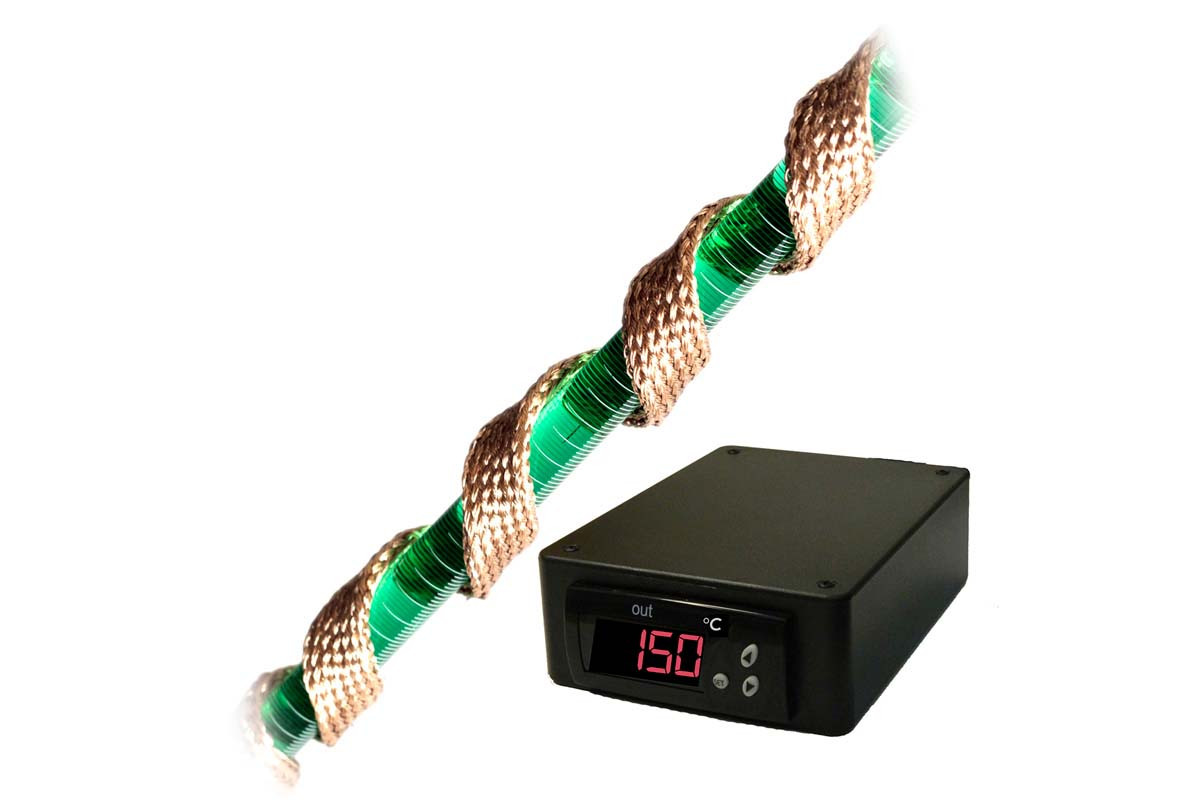

Heavy Insulated Heating Tapes (BIH) With SDC Temperature Controller Bundle

Heavy Insulated Heating Tapes (BIH) With SDC Temperature Controller Bundle

$303,85
Add to wishlist
Under the order
Value-Priced Bundles: Save $10 by ordering these heaters and temperature controllers together

BIH Heating Tape (Shop Separately)

  • High-temperature fiberglass heating tape with maximum exposure temperatures:
    • Removable & Reusable Use: Up to 572°F (300°C)
    • Single Install Use: Up to 932°F (500°C)
  • Multi-stranded resistance wire heating element provides exceptional flexibility and durability.
  • Fiberglass outer sheath provides electrical insulation for safe use with electrically conductive surfaces.
  • Rapid thermal response provides accurate heat when you need it.
  • Available in a wide variety of length and width configurations.
  • Ideal for laboratory heating applications for apparatus, gas tubing, temporary heat, valves, and more.
  • Safe for use with glass and electrically conductive metal surfaces.
  • Choice of power leads on same end or opposite ends to suit your electrical needs.
  • Includes 9" (230mm) long high temperature tie downs for safe and easy installation.
  • Temperature controller is required for safe operation of this product.
  • Built-in split-plug design easily connects to your choice of temperature controlling device.

SDC Digital Benchtop Temperature Controller (Shop Separately)

  • Compact, digital on/off temperature controller
  • Easily programmable (°C or °F)
  • Compatible with a wide range of heaters and applications
  • Fused output for added safety
  • Includes factory installed thermocouple sensor

BIH Heating Tape

  • Maximum exposure temperature:
    • Removable & Reusable Use: Up to 572°F (300°C)
    • Single Install Use: Up to 932°F (500°C)
  • Construction:
    • Fiberglass knit and braided heating element
    • Fiberglass knit and braided outer sheath
    • Power density:
      • Standard: 8.6 W/in2 (0.013 W/mm2 )
      • 24" (610mm) power leads with:
        • 120VAC: Separable standard 2-prong power plug (NEMA 1-15)
        • 240VAC: Bare wire connection
        • RoHS symbol  reach symbol

SDC Digital Benchtop Temperature Controller

  • Temperature control range: 0°C to 600°C or 32°F to 999°F
  • Input power cord length: 5ft (1.5m)
  • Output power cord length: 5ft (1.5m)
  • Thermocouple length: 5ft (1.5m)
  • 10A Fused output
Part number voltage wattage TEMPERATURE CONTROL RANGE Sensor type Length Price
SDCJFA-BIH101010L 120 105 32°F to 999°F J-Type Thermocouple 1 ft (0.3 m) $315,35
SDCJCA-BIH101080L 120 830 0°C to 600°C J-Type Thermocouple 8 ft (2.4 m) $383
SDCKCA-BIH051060L 120 310 0°C to 600°C K-Type Thermocouple 6 ft (1.8 m) $331,45
SDCJFA-BIH051080L 120 420 32°F to 999°F J-Type Thermocouple 8 ft (2.4 m) $348,7
SDCJCA-BIH101020L 120 210 0°C to 600°C J-Type Thermocouple 2 ft (0.6 m) $331,45
SDCKFA-BIH101100L 120 1045 32°F to 999°F K-Type Thermocouple 10 ft (3.0 m) $393,55
SDCJFA-BIH051020L 120 105 32°F to 999°F J-Type Thermocouple 2 ft (0.6 m) $303,85
SDCJCA-BIH051100L 120 520 0°C to 600°C J-Type Thermocouple 10 ft (3.0 m) $370,55
SDCKFA-BIH101040L 120 420 32°F to 999°F K-Type Thermocouple 4 ft (1.2 m) $342,95
SDCJCA-BIH051040L 120 210 0°C to 600°C J-Type Thermocouple 4 ft (1.2 m) $315,35
SDCKFA-BIH051120L 120 620 32°F to 999°F K-Type Thermocouple 12 ft (3.7 m) $393,55
SDCKCA-BIH101060L 120 620 0°C to 600°C K-Type Thermocouple 6 ft (1.8 m) $362,5
SDCJFA-BIH101080L 120 830 32°F to 999°F J-Type Thermocouple 8 ft (2.4 m) $383
SDCKFA-BIH051060L 120 310 32°F to 999°F K-Type Thermocouple 6 ft (1.8 m) $331,45
SDCKCA-BIH101010L 120 105 0°C to 600°C K-Type Thermocouple 1 ft (0.3 m) $315,35
SDCJFA-BIH101020L 120 210 32°F to 999°F J-Type Thermocouple 2 ft (0.6 m) $331,45
SDCJCA-BIH101100L 120 1045 0°C to 600°C J-Type Thermocouple 10 ft (3.0 m) $393,55
SDCKCA-BIH051080L 120 420 0°C to 600°C K-Type Thermocouple 8 ft (2.4 m) $348,7
SDCJFA-BIH051100L 120 520 32°F to 999°F J-Type Thermocouple 10 ft (3.0 m) $370,55
SDCJCA-BIH101040L 120 420 0°C to 600°C J-Type Thermocouple 4 ft (1.2 m) $342,95
SDCKCA-BIH051020L 120 105 0°C to 600°C K-Type Thermocouple 2 ft (0.6 m) $303,85
SDCJFA-BIH051040L 120 210 32°F to 999°F J-Type Thermocouple 4 ft (1.2 m) $315,35
SDCJCA-BIH051120L 120 620 0°C to 600°C J-Type Thermocouple 12 ft (3.7 m) $393,55
SDCKFA-BIH101060L 120 620 32°F to 999°F K-Type Thermocouple 6 ft (1.8 m) $362,5
SDCJCA-BIH051060L 120 310 0°C to 600°C J-Type Thermocouple 6 ft (1.8 m) $331,45
SDCKFA-BIH101010L 120 105 32°F to 999°F K-Type Thermocouple 1 ft (0.3 m) $315,35
SDCKCA-BIH101080L 120 830 0°C to 600°C K-Type Thermocouple 8 ft (2.4 m) $382,05
SDCJFA-BIH101100L 120 1045 32°F to 999°F J-Type Thermocouple 10 ft (3.0 m) $393,55
SDCKFA-BIH051080L 120 420 32°F to 999°F K-Type Thermocouple 8 ft (2.4 m) $348,7
SDCKCA-BIH101020L 120 210 0°C to 600°C K-Type Thermocouple 2 ft (0.6 m) $331,45
SDCJFA-BIH101040L 120 420 32°F to 999°F J-Type Thermocouple 4 ft (1.2 m) $342,95
SDCKFA-BIH051020L 120 105 32°F to 999°F K-Type Thermocouple 2 ft (0.6 m) $303,85
SDCKCA-BIH051100L 120 520 0°C to 600°C K-Type Thermocouple 10 ft (3.0 m) $370,55
SDCJFA-BIH051120L 120 620 32°F to 999°F J-Type Thermocouple 12 ft (3.7 m) $393,55
SDCJCA-BIH101060L 120 620 0°C to 600°C J-Type Thermocouple 6 ft (1.8 m) $362,5
SDCKCA-BIH051040L 120 210 0°C to 600°C K-Type Thermocouple 4 ft (1.2 m) $315,35
SDCJFA-BIH051060L 120 310 32°F to 999°F J-Type Thermocouple 6 ft (1.8 m) $331,45
SDCJCA-BIH101010L 120 105 0°C to 600°C J-Type Thermocouple 1 ft (0.3 m) $315,35
SDCKFA-BIH101080L 120 830 32°F to 999°F K-Type Thermocouple 8 ft (2.4 m) $382,05
SDCJCA-BIH051080L 120 420 0°C to 600°C J-Type Thermocouple 8 ft (2.4 m) $348,7
SDCKFA-BIH101020L 120 210 32°F to 999°F K-Type Thermocouple 2 ft (0.6 m) $331,45
SDCKCA-BIH101100L 120 1045 0°C to 600°C K-Type Thermocouple 1 ft (0.3 m) $393,55
SDCJCA-BIH051020L 120 105 0°C to 600°C J-Type Thermocouple 2 ft (0.6 m) $303,85
SDCKFA-BIH051100L 120 520 32°F to 999°F K-Type Thermocouple 10 ft (3.0 m) $370,55
SDCKCA-BIH101040L 120 420 0°C to 600°C K-Type Thermocouple 4 ft (1.2 m) $342,95
SDCJFA-BIH101060L 120 620 32°F to 999°F J-Type Thermocouple 6 ft (1.8 m) $362,5
SDCKFA-BIH051040L 120 210 32°F to 999°F K-Type Thermocouple 4 ft (1.2 m) $315,35
SDCKCA-BIH051120L 120 620 0°C to 600°C K-Type Thermocouple 12 ft (3.7 m) $393,55
