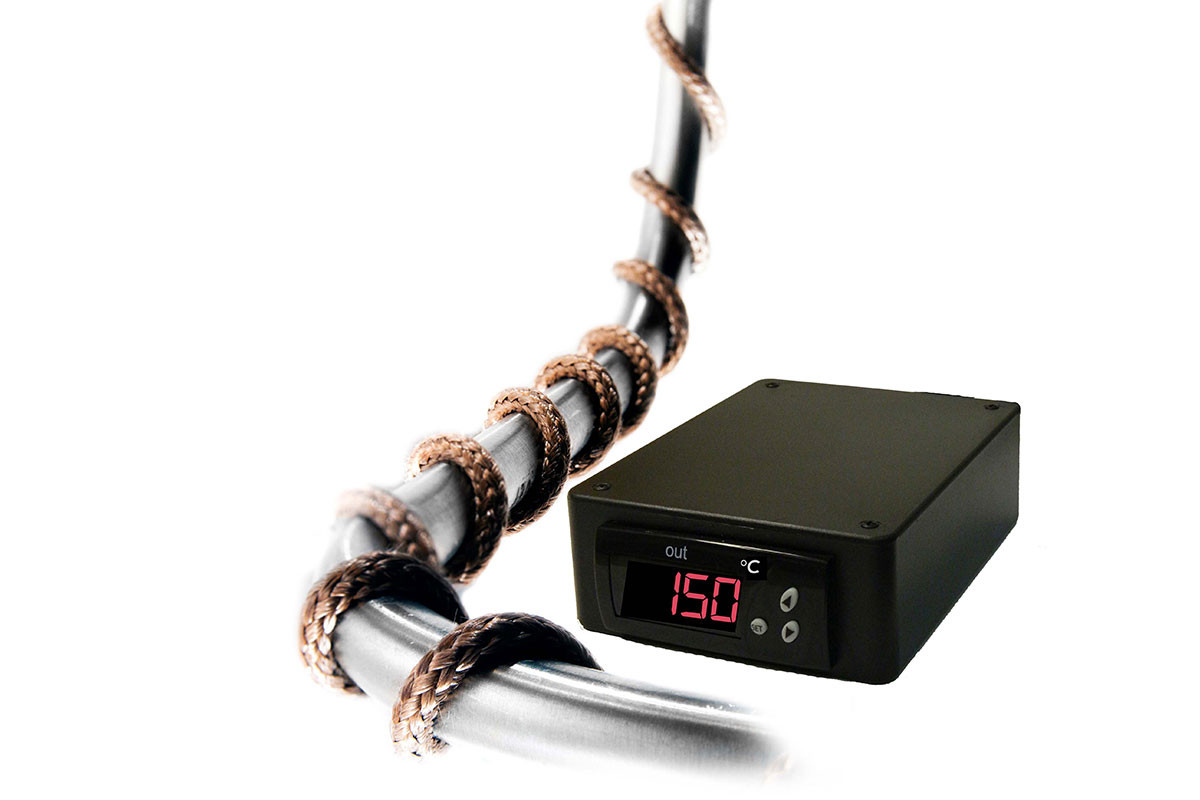

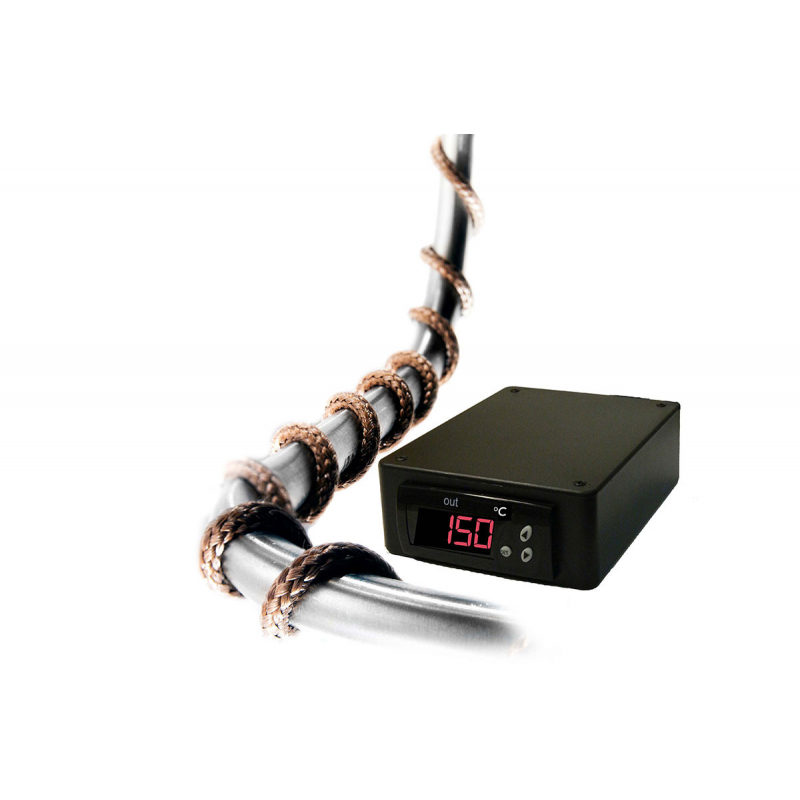

Heating Cords (HTC) With SDC Temperature Controller Bundle

Heating Cords (HTC) With SDC Temperature Controller Bundle

$313
Under the order
Value-Priced Bundles: Save $10 by ordering these heaters and temperature controllers together



HTC Heating Cord

  • Heating cords designed for use on small tubes, vessels, or any application where space is limited.

  • Maximum exposure temperature:
    Removeable & Reusable Use: Up to 572°F (300°C)
    Single Install Use: Up to 932°F (500°C)
  • Extremely flexible heating cords can be wrapped around objects as small as 1/8" (3mm) diameter.

  • Rapid thermal response provides accurate heat when you need it.

  • Multi-stranded resistance wire heating element provides exceptional flexibility and durability.

  • Fiberglass outer sheath provides electrical insulation for safe use with electrically conductive surfaces.

  • Available in a wide variety of length and width configurations.

  • Ideal for laboratory, R&D, gas tubing, production, maintenance, temporary heat, and more.

  • Safe for use with glass and electrically conductive metal surfaces.

  • Choice of power leads on same end or opposite ends to suit your electrical needs.

  • Includes 9" (230mm) long high temperature tie downs for safe and easy installation.

  • Temperature controller is required for safe operation of this product.

  • Built-in split-plug design easily connects to your choice of temperature controlling device.

SDC Digital Benchtop Temperature Controller

  • Compact, digital on/off temperature controller

  • Easily programmable (°C or °F)

  • Compatible with a wide range of heaters and applications

  • Fused output for added safety

  • Includes factory installed thermocouple sensor

BIH Heating Tape

  • Maximum exposure temperature:
    Removable & Reusable Use: Up to 572°F (300°C)
    Single Install Use: Up to 932°F (500°C)

  • Diameter: 3/16” (4.8mm)

  • Construction:

    • Fiberglass knit and braided heating element

    • Fiberglass knit and braided outer sheath

  • Power density:

    • Standard: 21 W/in(68 W/m)

  • 24" (610mm) power leads with:

    • 120VAC: Separable 2-prong split-plug (NEMA 1-15)

    • 240VAC: Crimped ferrule wire connection

SDC Digital Benchtop Temperature Controller

  • Temperature control range: 0°C to 600°C or 32°F to 999°F

  • Input power cord length: 5ft (1.5m)

  • Output power cord length: 5ft (1.5m)

  • Thermocouple length: 5ft (1.5m)

  • 10A Fused output

Part number voltage wattage TEMPERATURE CONTROL RANGE Sensor type Price
SDCJCA-HTC451002 120 125 0°C to 600°C J-Type $325,7
SDCKCA-HTC451002 120 125 0°C to 600°C K-Type $325,7
SDCJCA-HTC451005 120 43 0°C to 600°C J-Type $314
SDCKCA-HTC451005 120 43 0°C to 600°C K-Type $314
SDCJFA-HTC451003 120 260 32°F to 999°F J-Type $342,95
SDCKFA-HTC451003 120 260 32°F to 999°F K-Type $342,95
SDCJFA-HTC451008 120 82 32°F to 999°F J-Type $318,8
SDCKFA-HTC451008 120 82 32°F to 999°F K-Type $318,8
SDCJFA-HTC451006 120 22 32°F to 999°F J-Type $313,5
SDCKFA-HTC451006 120 22 32°F to 999°F K-Type $313,5
SDCJCA-HTC451009 120 170 0°C to 600°C J-Type $332,7
SDCKCA-HTC451009 120 170 0°C to 600°C K-Type $332,7
SDCJCA-HTC451001 120 64 0°C to 600°C J-Type $315,35
SDCKCA-HTC451001 120 64 0°C to 600°C K-Type $315,35
SDCJCA-HTC451007 120 17 0°C to 600°C J-Type $313
SDCKCA-HTC451007 120 17 0°C to 600°C K-Type $313
SDCJFA-HTC451002 120 125 32°F to 999°F J-Type $325,7
SDCKFA-HTC451002 120 125 32°F to 999°F K-Type $325,7
SDCJFA-HTC451005 120 43 32°F to 999°F J-Type $314
SDCKFA-HTC451005 120 43 32°F to 999°F K-Type $314
SDCJCA-HTC451003 120 260 0°C to 600°C J-Type $342,95
SDCKCA-HTC451003 120 260 0°C to 600°C K-Type $342,95
SDCJCA-HTC451008 120 82 0°C to 600°C J-Type $318,8
SDCKCA-HTC451008 120 82 0°C to 600°C K-Type $318,8
SDCJCA-HTC451006 120 22 0°C to 600°C J-Type $313,5
SDCKCA-HTC451006 120 22 0°C to 600°C K-Type $313,5
SDCJFA-HTC451009 120 170 32°F to 999°F J-Type $332,7
SDCKFA-HTC451009 120 170 32°F to 999°F K-Type $332,7
SDCJFA-HTC451001 120 64 32°F to 999°F J-Type $315,35
SDCKFA-HTC451001 120 64 32°F to 999°F K-Type $315,35
SDCJFA-HTC451007 120 17 32°F to 999°F J-Type $313
SDCKFA-HTC451007 120 17 32°F to 999°F K-Type $313
