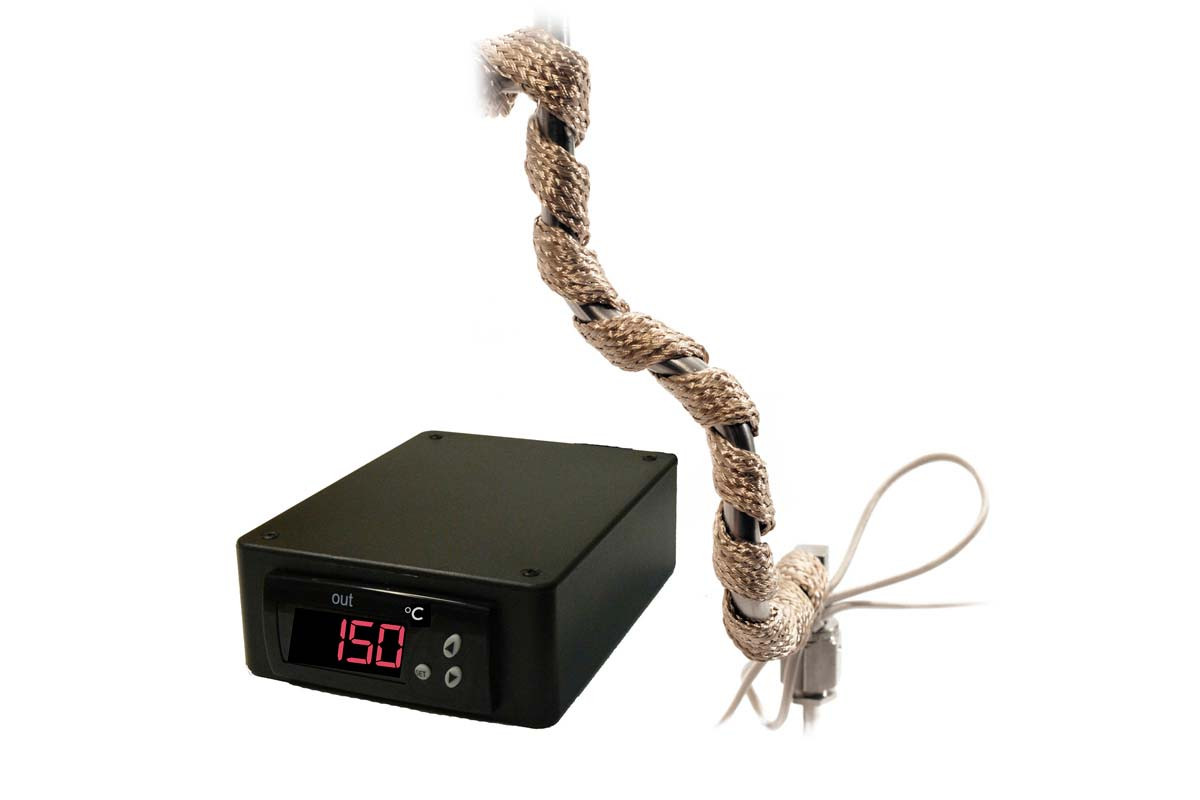

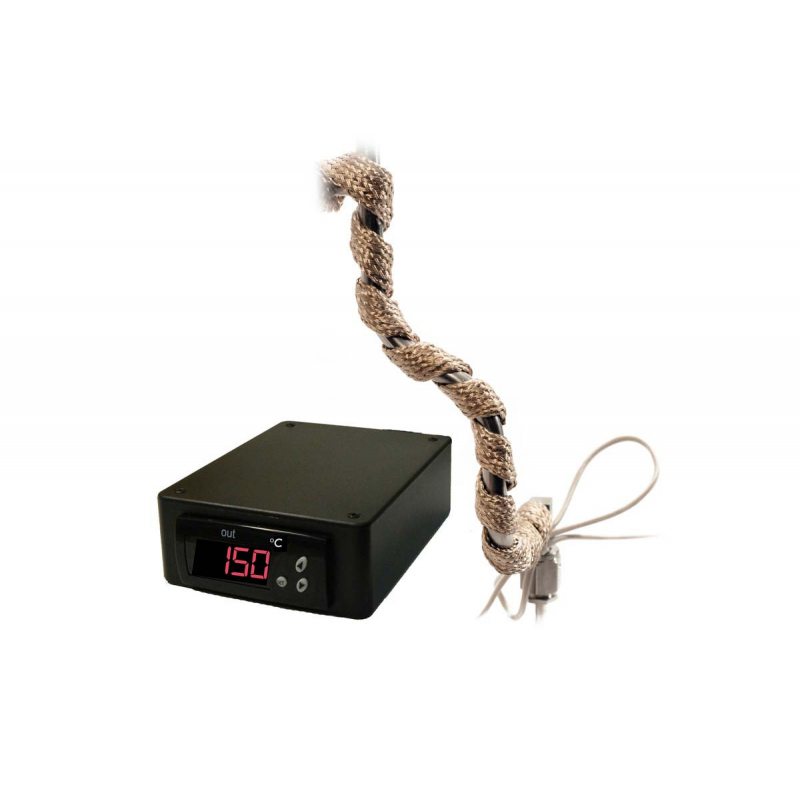

Dual Element Heating Tapes (BWH-D) With SDC Temperature Controller Bundle

    Dual Element Heating Tapes (BWH-D) With SDC Temperature Controller Bundle

    $314
    Add to wishlist
    Under the order
    Value-Priced Bundles: Save $10 by ordering these heaters and temperature controllers together
    • Maximum exposure temperature:
      • Removable & Reusable Use: Up to 572°F (300°C)
      • Single Install Use: Up to 932°F (500°C)
    • Dual-element multi-stranded resistance wire heating element provides maximum flexibility and durability.
    • Samox® outer sheath provides electrical insulation for safe use with electrically conductive surfaces.
    • Rapid thermal response provides accurate heat when you need it.
    • Available in a wide variety of length and width configurations.
    • Ideal for laboratory heating applications for apparatus, gas tubing, temporary heat, valves, and more.
    • Safe for use with glass and electrically conductive metal surfaces.
    • Choice of power leads on same end or opposite ends to suit your electrical needs.
    • Includes 9" (230mm) long high temperature tie downs for safe and easy installation.
    • Temperature controller is required for safe operation of this product.
    • Built-in 2-prong (NEMA1-15) molded plug design easily connects to your choice of temperature controlling device.
    • Maximum exposure temperature:
      • Removable & Reusable Use: Up to 572°F (300°C)
      • Single Install Use: Up to 932°F (500°C)
    • Construction:
      • Samox® knit and braided heating element
      • Samox® knit and braided outer sheath
    • Power density: 13.1 W/in2 (0.020 W/mm2 )
    • 24" (610mm) power leads with:
      • 120VAC: Standard 2-prong molded plug (NEMA 1-15)
      • 240VAC: Bare wire connection
    Part number voltage wattage TEMPERATURE CONTROL RANGE Sensor type Length Price
    SDCJCA-BWH051020LD 120 156 0°C to 600°C J-Type Thermocouple 2 ft (0.6 m) $314
    SDCKCA-BWH051020LD 120 156 0°C to 600°C K-Type Thermocouple 2 ft (0.6 m) $314
    SDCJFA-BWH101020LD 120 312 32°F to 999°F J-Type Thermocouple 2 ft (0.6 m) $329
    SDCKFA-BWH101020LD 120 312 32°F to 999°F K-Type Thermocouple 2 ft (0.6 m) $329
    SDCJFA-BWH051060LD 120 468 32°F to 999°F J-Type Thermocouple 6 ft (1.8 m) $339
    SDCKFA-BWH051060LD 120 468 32°F to 999°F K-Type Thermocouple 6 ft (1.8 m) $339
    SDCJCA-BWH101060LD 120 940 0°C to 600°C J-Type Thermocouple 6 ft (1.8 m) $356
    SDCKCA-BWH101060LD 120 940 0°C to 600°C K-Type Thermocouple 6 ft (1.8 m) $356
    SDCJCA-BWH051100LD 120 780 0°C to 600°C J-Type Thermocouple 10 ft (3.0 m) $379
    SDCKCA-BWH051100LD 120 780 0°C to 600°C K-Type Thermocouple 10 ft (3.0 m) $379
    SDCJCA-BWH051040LD 120 312 0°C to 600°C J-Type Thermocouple 4 ft (1.2 m) $325
    SDCKCA-BWH051040LD 120 312 0°C to 600°C K-Type Thermocouple 4 ft (1.2 m) $325
    SDCJFA-BWH101040LD 120 624 32°F to 175°F J-Type Thermocouple 4 ft (1.2 m) $348
    SDCKFA-BWH101040LD 120 624 32°F to 999°F K-Type Thermocouple 4 ft (1.2 m) $348
    SDCJFA-BWH051080LD 120 624 32°F to 999°F J-Type Thermocouple 8 ft (2.4 m) $356
    SDCKFA-BWH051080LD 120 624 32°F to 999°F K-Type Thermocouple 8 ft (2.4 m) $356
    SDCJFA-BWH051020LD 120 156 32°F to 999°F J-Type Thermocouple 2 ft (0.6 m) $314
    SDCKFA-BWH051020LD 120 156 32°F to 999°F K-Type Thermocouple 2 ft (0.6 m) $314
    SDCJCA-BWH101020LD 120 312 0°C to 600°C J-Type Thermocouple 2 ft (0.6 m) $329
    SDCKCA-BWH101020LD 120 312 0°C to 600°C K-Type Thermocouple 2 ft (0.6 m) $329
    SDCJCA-BWH051060LD 120 468 0°C to 600°C J-Type Thermocouple 6 ft (1.8 m) $339
    SDCKCA-BWH051060LD 120 468 0°C to 600°C K-Type Thermocouple 6 ft (1.8 m) $339
    SDCJFA-BWH101060LD 120 940 32°F to 999°F J-Type Thermocouple 6 ft (1.8 m) $356
    SDCKFA-BWH101060LD 120 940 32°F to 999°F K-Type Thermocouple 6 ft (1.8 m) $356
    SDCJFA-BWH051100LD 120 780 32°F to 999°F J-Type Thermocouple 10 ft (3.0 m) $379
    SDCKFA-BWH051100LD 120 780 32°F to 999°F K-Type Thermocouple 10 ft (3.0 m) $379
    SDCJFA-BWH051040LD 120 312 Up to 160°F (71°C) J-Type 4 ft (1.2 m) $325
    SDCKFA-BWH051040LD 120 312 32°F to 999°F K-Type Thermocouple 4 ft (1.2 m) $325
    SDCJCA-BWH101040LD 120 624 0°C to 600°C J-Type Thermocouple 4 ft (1.2 m) $348
    SDCKCA-BWH101040LD 120 624 0°C to 600°C K-Type Thermocouple 4 ft (1.2 m) $348
    SDCJCA-BWH051080LD 120 624 0°C to 600°C J-Type Thermocouple 8 ft (2.4 m) $356
    SDCKCA-BWH051080LD 120 624 0°C to 600°C K-Type Thermocouple 8 ft (2.4 m) $356
