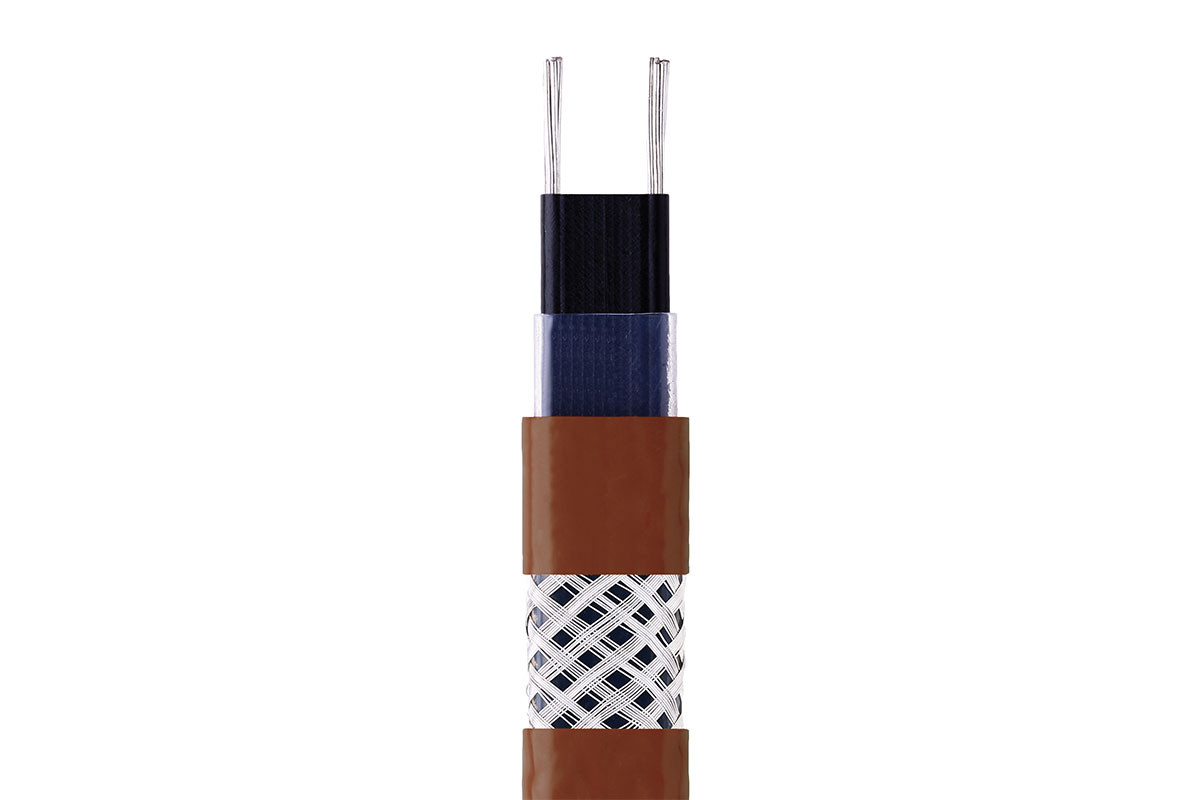

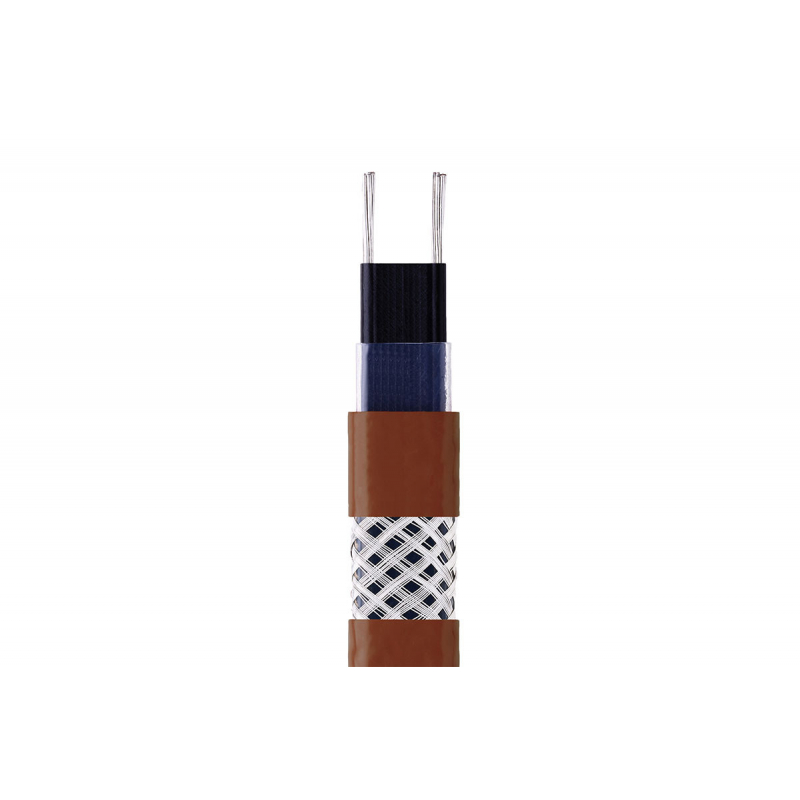

Mid-Temperature Self-Regulating Heating Cable (SLMCBL)
BriskHeat Mid-Temperature Self-Regulating Heating Cable is an ideal solution for freeze protection and low temperature process maintenance up to 230°F (110°C); Suitable for extreme cold conditions as low as -22°F (-30°C). This heating cable automatically adjusts heat output based on surface temperature.
$9,75
Under the order
BriskHeat Mid-Temperature Self-Regulating Heating Cable is an ideal solution for freeze protection and low temperature process maintenance up to 230°F (110°C); Suitable for extreme cold conditions as low as -22°F (-30°C). This heating cable automatically adjusts heat output based on surface temperature.
- No temperature controller is required.
- If a specific process temperature is required a temperature controller is necessary.
- Safe for indoor and outdoor use.
- Safe to overlap heating cable for easy installation.
- Safe to insulate.
Select the desired cable below; adding to Cart the number of feet required.
- Maximum continuous maintenance temperature: 230°F (110°C)
- Maximum intermittent exposure temperature: 275°F (135°C)
- Minimum intermittent exposure temperature: -22°F (-30°C)
- Nominal power output at 50°F (10°C): 5, 10, 15, 20 W/ft (17, 31, 45, 60 W/m)
- Supply voltages (AC): 110-120V or 208-277V
- Moisture, chemical, and flame resistant
- Bus wire gauge: 16 AWG
- Braid resistance: Tinned copper 0.0055 ohms/ft (0.0182 ohms/m)
Outer Layer Options:
|
Product Type |
Description |
Nominal Dimensions |
Shipping Weight: 500-ft (152m) spool |
Purpose |
|
SLMCBL-B |
Tinned Copper Metal Braid |
0.15” x 0.45” (3.8mm x 11.4mm) |
32 lb. (14.5 kg) |
Ordinary applications |
|
SLMCBL-BP |
Tinned Copper Metal Braid with Thermoplastic Elastomer Overjacket |
0.23” x 0.54” (6.0mm x 13.6mm) |
37 lb. (16.8 kg) |
For use in wet or weak chemical environments (i.e. weak acids) |
|
SLMCBL-BF |
Tinned Copper Metal Braid with Fluoropolymer Overjacket |
0.19” x 0.49” (4.8mm x 12.4mm) |
47 lb. (21.2 kg) |
For use in strong chemical environments (i.e. strong acids) |
| Part number | voltage | Watts per foot (meter) | Outer cover | Price | |
|---|---|---|---|---|---|
| SLMCBL5120B | 110-120 | 5 W/ft (17 W/m) | Tinned Copper Metal Braid | $9,75 | |
| SLMCBL5120BP | 110-120 | 5 W/ft (17 W/m) | Thermoplastic Overjacket | $9,83 | |
| SLMCBL5120BF | 110-120 | 5 W/ft (17 W/m) | Fluoropolymer Overjacket | $11,85 | |
| SLMCBL10120B | 110-120 | 10 W/ft (31 W/m) | Tinned Copper Metal Braid | $9,83 | |
| SLMCBL10120BP | 110-120 | 10 W/ft (31 W/m) | Thermoplastic Overjacket | $9,94 | |
| SLMCBL10120BF | 110-120 | 10 W/ft (31 W/m) | Fluoropolymer Overjacket | $11,99 | |
| SLMCBL15120B | 110-120 | 15 W/ft (45 W/m) | Tinned Copper Metal Braid | $9,94 | |
| SLMCBL15120BP | 110-120 | 15 W/ft (45 W/m) | Thermoplastic Overjacket | $9,99 | |
| SLMCBL15120BF | 110-120 | 15 W/ft (45 W/m) | Fluoropolymer Overjacket | $12,2 | |
| SLMCBL20120B | 110-120 | 20 W/ft (60 W/m) | Tinned Copper Metal Braid | $9,99 | |
| SLMCBL20120BF | 110-120 | 20 W/ft (60 W/m) | Fluoropolymer Overjacket | $12,36 | |
| SLMCBL5240B | 208-277 | 5 W/ft (17 W/m) | Tinned Copper Metal Braid | $9,75 | |
| SLMCBL5240BP | 208-277 | 5 W/ft (17 W/m) | Thermoplastic Overjacket | $9,83 | |
| SLMCBL5240BF | 208-277 | 5 W/ft (17 W/m) | Fluoropolymer Overjacket | $11,85 | |
| SLMCBL10240B | 208-277 | 10 W/ft (31 W/m) | Tinned Copper Metal Braid | $9,83 | |
| SLMCBL10240BP | 208-277 | 10 W/ft (31 W/m) | Thermoplastic Overjacket | $9,94 | |
| SLMCBL10240BF | 208-277 | 10 W/ft (31 W/m) | Fluoropolymer Overjacket | $11,99 | |
| SLMCBL15240B | 208-277 | 15 W/ft (45 W/m) | Tinned Copper Metal Braid | $9,94 | |
| SLMCBL15240BP | 208-277 | 15 W/ft (45 W/m) | Thermoplastic Overjacket | $9,99 | |
| SLMCBL15240BF | 208-277 | 15 W/ft (45 W/m) | Fluoropolymer Overjacket | $12,2 | |
| SLMCBL20240B | 208-277 | 20 W/ft (60 W/m) | Tinned Copper Metal Braid | $9,99 | |
| SLMCBL20240BF | 208-277 | 20 W/ft (60 W/m) | Fluoropolymer Overjacket | $12,36 |
