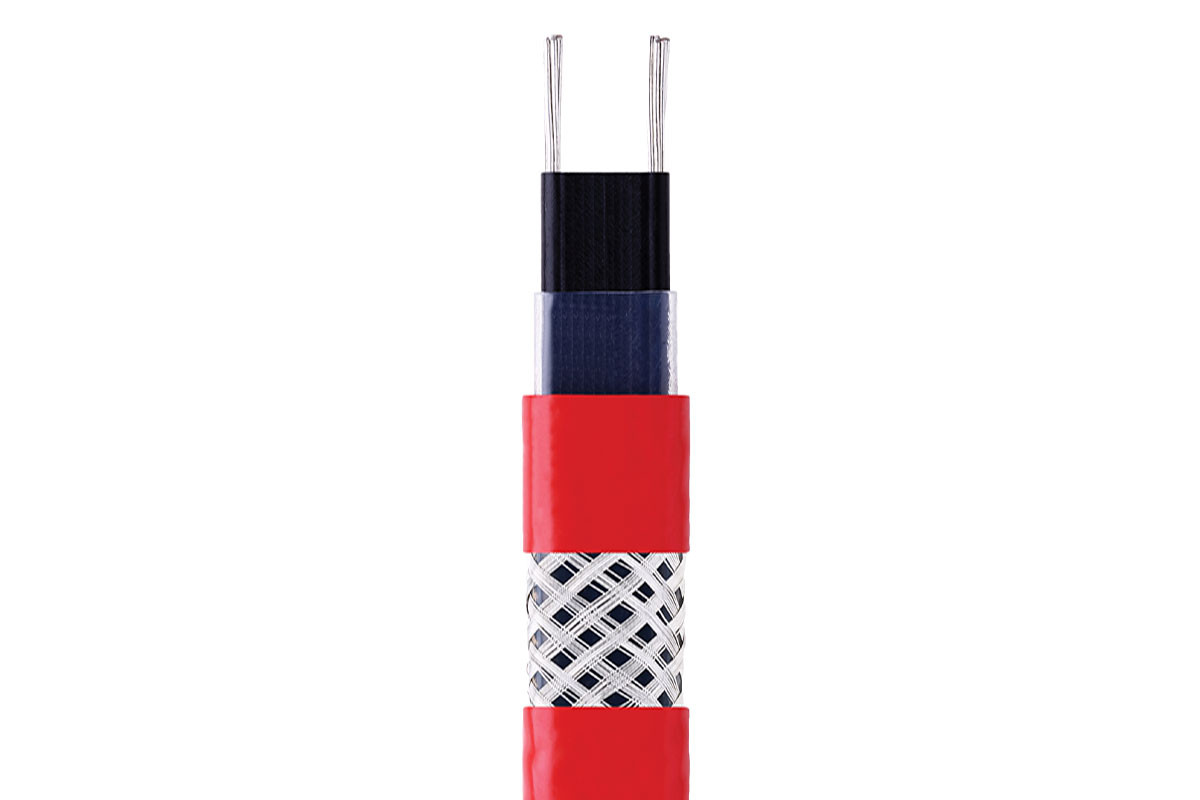

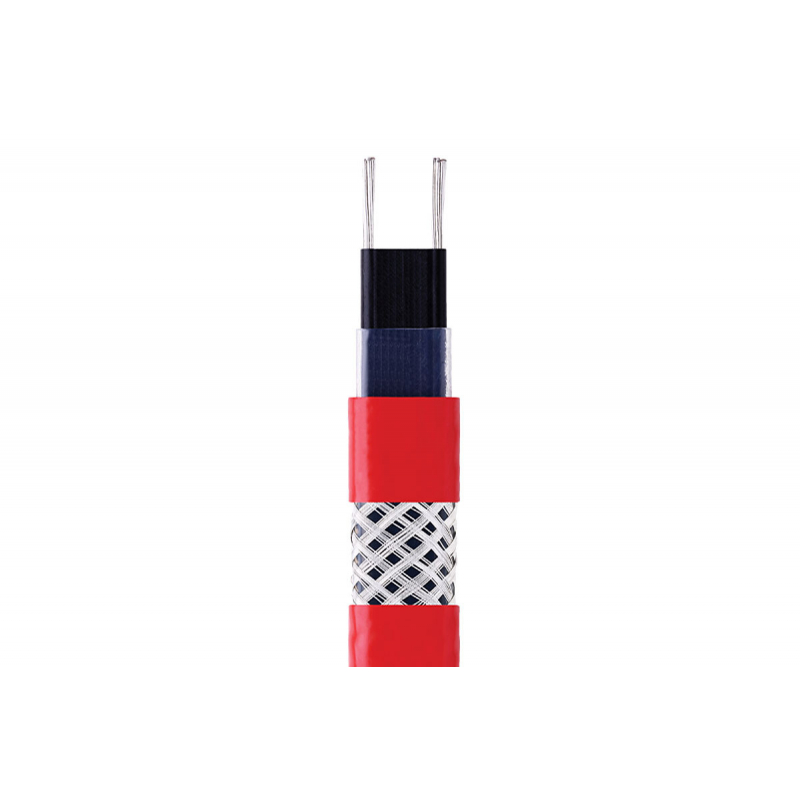

High-Temperature Self-Regulating Heating Cable (SLHCBL)
BriskHeat High-Temperature Self-Regulating Heating Cable (SLHCBL) is ideal for freeze protection and low temperature process maintenance up to 248⁰F (120⁰C). Self-Regulating Heating cable self-regulates temperature by automatically adjusting heat output based on surface and ambient temperatures. No temperature controller is required.
$10,25
Under the order
BriskHeat High-Temperature Self-Regulating Heating Cable (SLHCBL) is ideal for freeze protection and low temperature process maintenance up to 248⁰F (120⁰C). Self-Regulating Heating cable self-regulates temperature by automatically adjusting heat output based on surface and ambient temperatures. No temperature controller is required.
- If a specific process temperature is required a temperature controller is necessary.
- Suitable for extreme cold conditions as low as -22°F (-30°C).
- Safe for indoor and outdoor use.
- Safe to overlap heating cable for easy installation.
- Safe to insulate.
Select the desired cable below; adding to Cart the number of feet required.
- Maximum continuous maintenance temperature: 248°F (120°C)
- Maximum intermittent exposure temperature: 392°F (200°C)
- Minimum intermittent exposure temperature: -22°F (-30°C)
- Nominal power output at 50°F (10°C): 5, 10, 15, 20 W/ft (15, 30, 45, 60 W/m)
- Supply voltages (AC): 110-120V or 208-277V
- Moisture, chemical, and flame resistant
- Bus wire gauge: 16 AWG
- Braid resistance: Tinned copper 0.0055 ohms/ft (0.0182 ohms/m)
Outer Layer Options:
|
Product Type |
Description |
Nominal Dimensions |
Shipping Weight: 500-ft (152m) spool |
Purpose |
|
SLHCBL-B |
Tinned Copper Metal Braid |
0.15” x 0.45” (3.8mm x 11.4mm) |
38 lb. (17 kg) |
Ordinary applications |
|
SLHCBL-BF |
Tinned Copper Metal Braid with Fluoropolymer Overjacket |
0.19” x 0.49” (4.8mm x 12.4mm) |
47 lb. (21.2 kg) |
For use in strong chemical environments (i.e. strong acids) |
| Part number | voltage | Watts per foot (meter) | Outer cover | Price | |
|---|---|---|---|---|---|
| SLHCBL5120B | 110-120 | 5 W/ft (17 W/m) | Tinned Copper Metal Braid | $10,25 | |
| SLHCBL5120BF | 110-120 | 5 W/ft (17 W/m) | Fluoropolymer Overjacket | $12,55 | |
| SLHCBL10120B | 110-120 | 10 W/ft (31 W/m) | Tinned Copper Metal Braid | $10,25 | |
| SLHCBL10120BF | 110-120 | 10 W/ft (31 W/m) | Fluoropolymer Overjacket | $12,55 | |
| SLHCBL15120B | 110-120 | 15 W/ft (45 W/m) | Tinned Copper Metal Braid | $10,35 | |
| SLHCBL15120BF | 110-120 | 15 W/ft (45 W/m) | Fluoropolymer Overjacket | $12,75 | |
| SLHCBL20120B | 110-120 | 20 W/ft (60 W/m) | Tinned Copper Metal Braid | $10,35 | |
| SLHCBL20120BF | 110-120 | 20 W/ft (60 W/m) | Fluoropolymer Overjacket | $12,75 | |
| SLHCBL5240B | 208-277 | 5 W/ft (17 W/m) | Tinned Copper Metal Braid | $10,25 | |
| SLHCBL5240BF | 208-277 | 5 W/ft (17 W/m) | Fluoropolymer Overjacket | $12,55 | |
| SLHCBL10240B | 208-277 | 10 W/ft (31 W/m) | Tinned Copper Metal Braid | $10,25 | |
| SLHCBL10240BF | 208-277 | 10 W/ft (31 W/m) | Fluoropolymer Overjacket | $12,55 | |
| SLHCBL15240B | 208-277 | 15 W/ft (45 W/m) | Tinned Copper Metal Braid | $10,35 | |
| SLHCBL15240BF | 208-277 | 15 W/ft (45 W/m) | Fluoropolymer Overjacket | $12,75 | |
| SLHCBL20240B | 208-277 | 20 W/ft (60 W/m) | Tinned Copper Metal Braid | $10,35 | |
| SLHCBL20240BF | 208-277 | 20 W/ft (60 W/m) | Fluoropolymer Overjacket | $12,75 |
