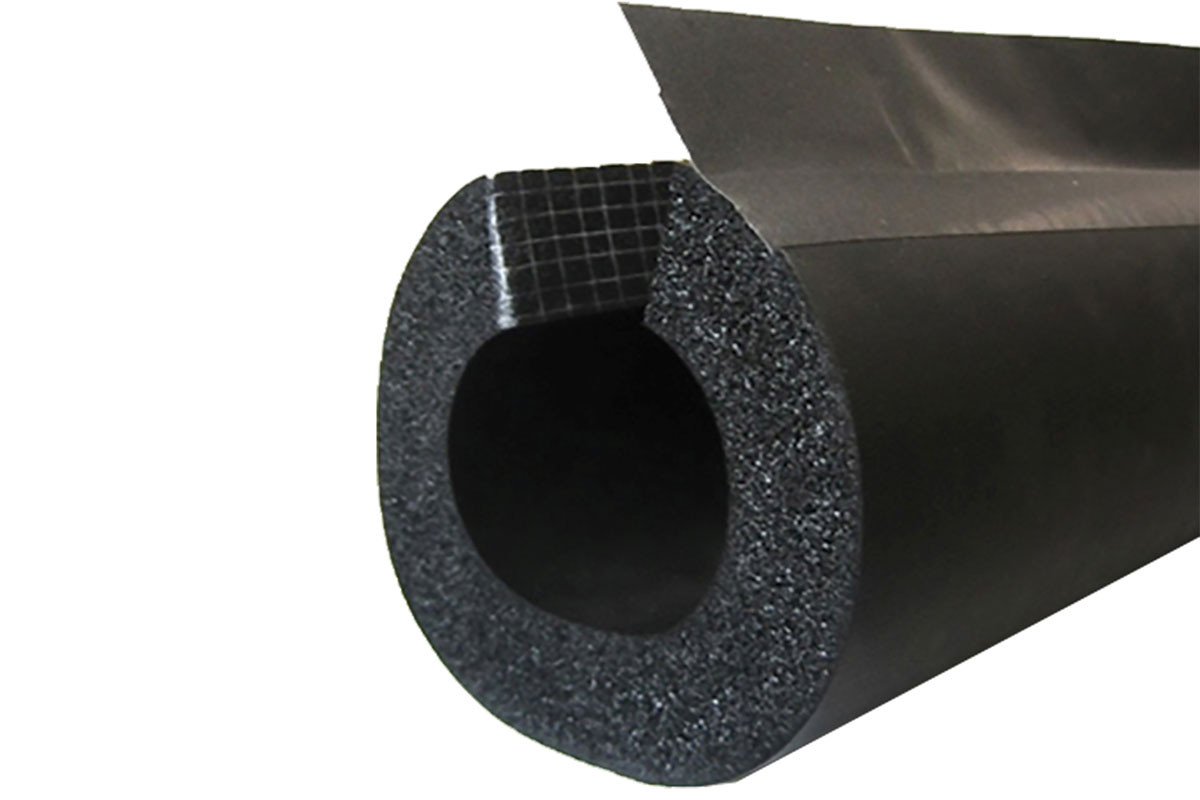

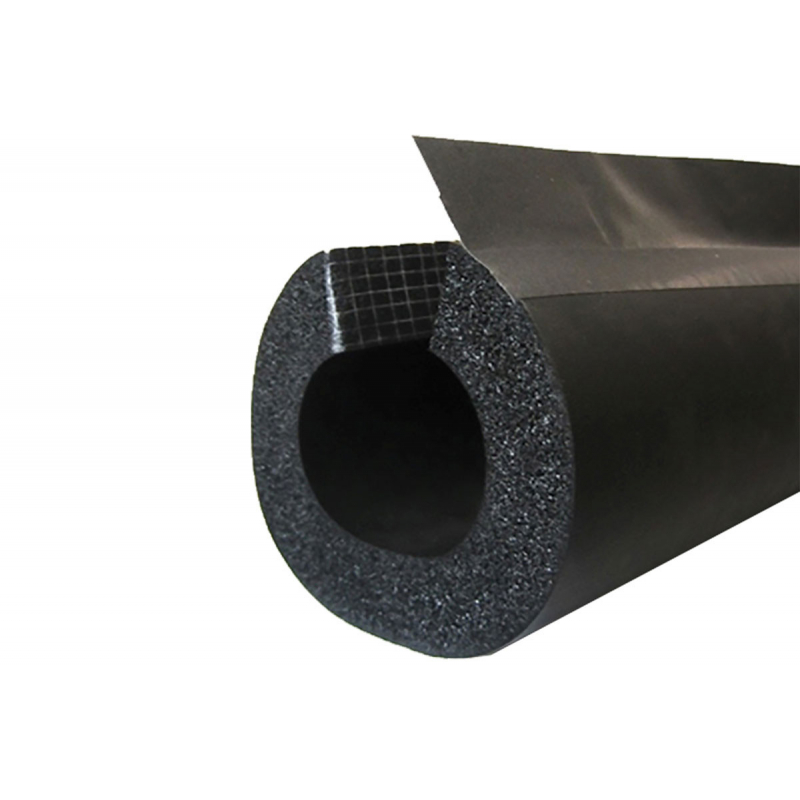

INSUL-LOCK DS Flexible Closed Cell Pipe Insulation

    BriskHeat INSUL-LOCK DS (Double Seal) is an Easy-to-install, 6.0ft (1.8m) in length, pipe insulation with locking adhesive flapping. This mold and mildew resistant pipe insulation is an environmentally friendly foam pipe tube wrap; used to prevent condensation and water pipe freeze protection.

    $17
    Add to wishlist
    Under the order

    BriskHeat INSUL-LOCK DS (Double Seal) is an Easy-to-install, 6.0ft (1.8m) in length, pipe insulation with locking adhesive flapping. This mold and mildew resistant pipe insulation is an environmentally friendly foam pipe tube wrap; used to prevent condensation and water pipe freeze protection.

     TIP: Combine with Self-Regulating Heating Cable to maintain temperature while warming water pipes to prevent freeze.

    • Easy-to-install with locking adhesive flap
    • Double-seal technology
      • Built in pressure sensitive adhesive seam ensures maximum thermal efficiency
      • Built-in PVC overlap tape with acrylic adhesive provides environmental protection
    • Scrim reinforcement on the seam surface
    • Environmental-friendly, CFC-free, flexible elastomeric thermal insulation
    • Mold and mildew resistant non-porous, fiber-free foam insulation
    • Resistant to moisture vapor flow
    • Compatible with a variety of heating cable and heating tapes
    • Operating temperature range: -70°F (-57°C) to 220°F (104°C)
    • R-Value: 3
    • Color: Black
    • Length: 6.0ft (1.8m)
    • Thickness: 0.5" (13mm)
    • Density: 3 to 6 PCF
    • Water vapor permeability:
      • Dry cup (Elastomeric insulation): 0.03 permeation per inch
      • Wet cup (Glued seam with overlap): 0.12 permeation per inch
    • Water absorption % (Volume change): 0

    Part Number

    Recommended
    Pipe/Tube O.D.

    Inside Diameter of Insul-Lock® DS

    INSUL78

    1/2” - 5/8”

    7/8”

    INSUL118

    3/4” - 7/8”

    1-1/8”

    INSUL138

    1”

    1-3/8”

    INSUL158

    1-1/8”

    1-5/8”

    INSUL2

    1-3/8”

    2”

    INSUL218

    1-5/8”

    2-1/8”

    INSUL238

    2”

    2-3/8”

    INSUL258

    2-1/8”

    2-5/8”

    INSUL278

    2-3/8”

    2-7/8”

    INSUL318

    2-5/8”

    3-1/8”

    INSUL312

    2-7/8”

    3-1/2”

    INSUL358

    3-1/8”

    3-5/8”

    INSUL418

    3-1/2”

    4-1/8”

    INSUL412

    4”

    4-1/2”

    Pipe Insulation Applications:

    • Pipe & tube insulation for self-regulating heating cable.
    • Pipe Freeze protection
    • Pipe Insulation Wrap
    • Water pipe freeze protection
    • Pipe insulation; Pipe condensation prevention
    • Air conditioning
    • Cold water
    • Refrigeration
    • Duct wrap
    • Hot water
    • HVAC/R and plumbing
    • Condensation prevention for refrigerant lines, cold water plumbing, roof drains, chilled water systems, and more.
    Part number Inside diameter Price
    INSUL78 7/8 in (22 mm) $17
    INSUL118 1-1/8 in (29 mm) $19
    INSUL138 1-3/8 in (35 mm) $22
    INSUL158 1-5/8 in (41 mm) $24
    INSUL2 2 in (51 mm) $27
    INSUL218 2-1/8 in (54 mm) $29
    INSUL238 2-3/8 in (60 mm) $39
    INSUL258 2-5/8 in (67 mm) $44
    INSUL278 2-7/8 in (73 mm) $48
    INSUL318 3-1/8 in (79 mm) $51
    INSUL312 3-1/2 in (89 mm) $54
    INSUL358 3-5/8 in (92 mm) $55
    INSUL418 4-1/8 in (104 mm) $67
    INSUL412 4-1/2 in (114 mm) $69
