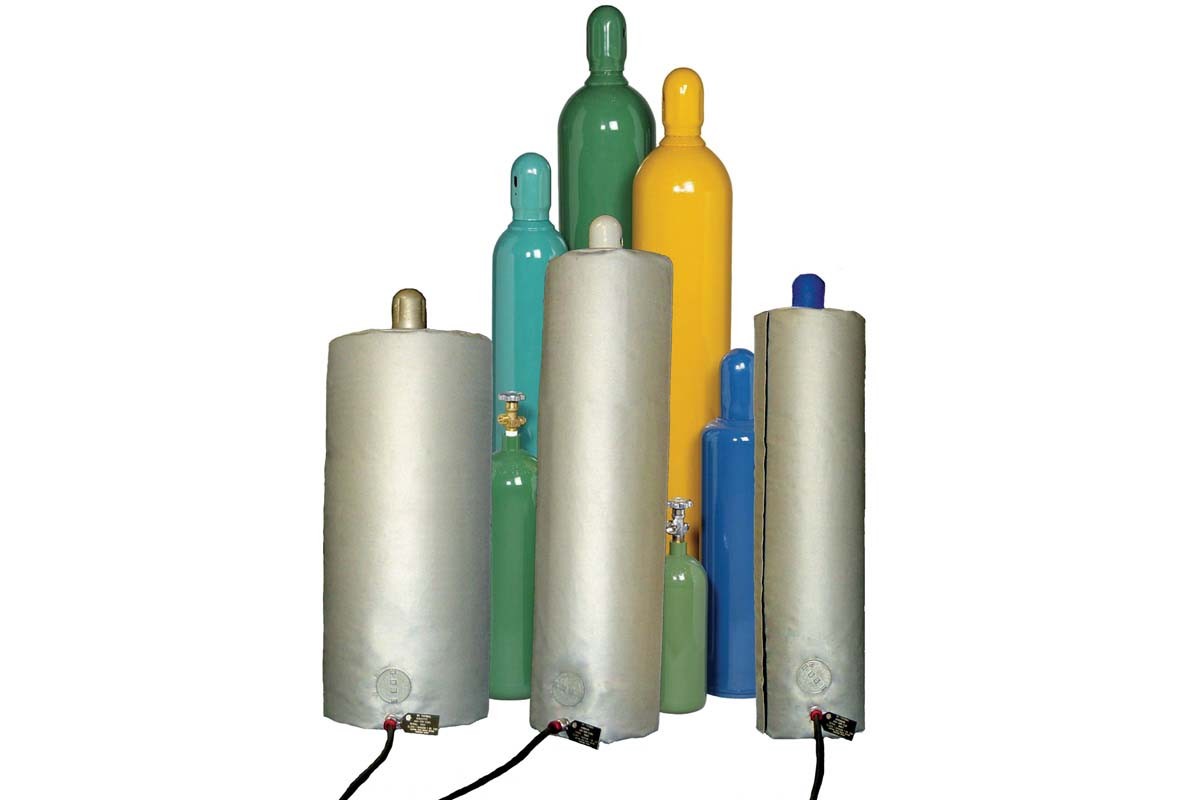

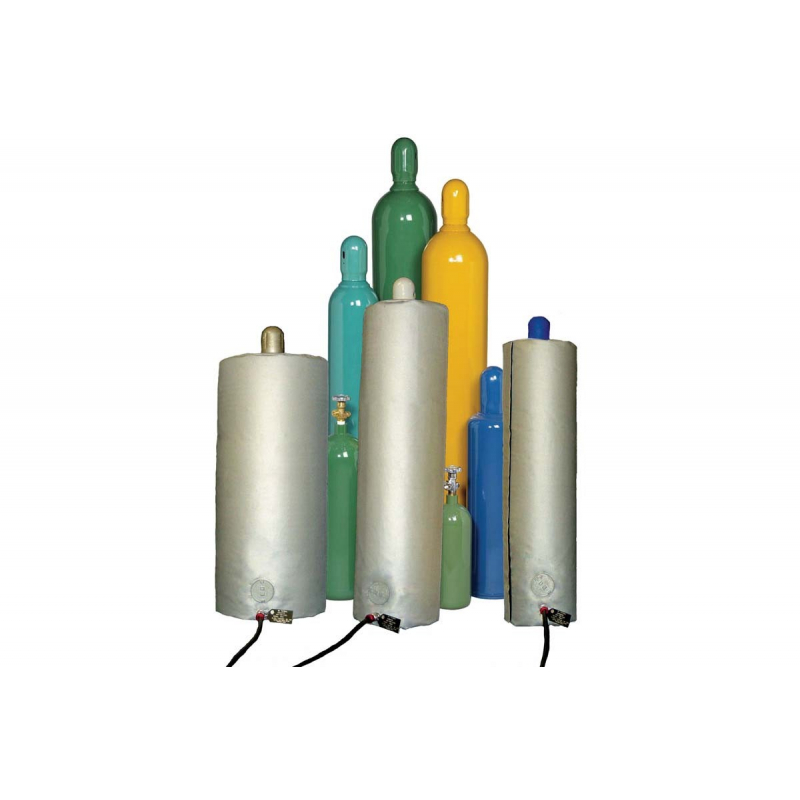

Hazardous-Area Rated Gas Cylinder Warmer - CSA Class I, Division 1 (HCW)

Hazardous-Area Rated Gas Cylinder Warmer - CSA Class I, Division 1 (HCW)

$1 848
Add to wishlist
Under the order

  • Improves Process Control and Reduces Wasted Condensed Gas

    • Creates convection current

    • Increases pressure inside cylinder

  • Gases Know to Benefit from This Process

    • SF 6' Propane, Nitrogen, Oxygen, BCI 3' , WF 6' and HF

  • Fits Most Gas Cylinders

  • Full Surface Coverage

  • Insulation Reduces Heat Loss

  • Class I Division 1 Groups B, C and D

  • Self-regulating grounded heating element

  • 150oF (66oC) maximum exposure temperature on heating surface

  • Available in 120 and 240 VAC

  • Frequency range: 50-60Hz

  • Insulation thickness

    • Sides: 2.0" (51mm)

    • Top: 0.5" (13mm)

  • Ambient temperature range: 30oF to 95oF (-1oC to 35oC)

  • Closure: hook and loop fastener

  • Moisture and oil resistant

  • Capable of being used outdoors

  • Power lead type: Teck 90 cable

  • Power lead length: 10-foot (3m)

  • Optional cylinder base insulation pad and valve cover to further reduce heat loss

HCW heaters can be custom designed for a wide range of gas cylinder sizes. Contact us for more information.

Diameter: Minimum 8" (203mm), Maximum 15" (381mm)

Length: Minimum 15" (381mm), Maximum 51" (1,295mm)

Part number voltage Size wattage Price
HCW8481501 120 8" x 48" (203 mm x 1219 mm) 150 $1 848
HCW848501 120 8" x 48" (203 mm x 1219 mm) 50 $1 848
HCW9511002 240 9" x 51" (229 mm x 1295 mm) 100 $1 878
HCW10471001 120 10" x 47" (254 mm x 1194 mm) 100 $1 898
HCW15431502 240 15" x 43" (381 mm x 1092 mm) 150 $2 070
HCW1543502 240 15" x 43" (381 mm x 1092 mm) 50 $2 070
HCW8481502 240 8" x 48" (203 mm x 1219 mm) 150 $1 848
HCW848502 240 8" x 48" (203 mm x 1219 mm) 50 $1 848
HCW9511501 120 9" x 51" (229 mm x 1295 mm) 150 $1 878
HCW951501 120 9" x 51" (229 mm x 1295 mm) 50 $1 878
HCW10471002 240 10" x 47" (254 mm x 1194 mm) 100 $1 898
HCW15431001 120 15" x 43" (381 mm x 1092 mm) 100 $2 070
HCW8481001 120 8" x 48" (203 mm x 1219 mm) 100 $1 848
HCW9511502 240 9" x 51" (229 mm x 1295 mm) 150 $1 878
HCW951502 240 9" x 51" (229 mm x 1295 mm) 50 $1 878
HCW10471501 120 10" x 47" (254 mm x 1194 mm) 150 $1 898
HCW1047501 120 10" x 47" (254 mm x 1194 mm) 50 $1 898
HCW15431002 240 15" x 43" (381 mm x 1092 mm) 100 $2 070
HCW8481002 240 8" x 48" (203 mm x 1219 mm) 100 $1 848
HCW9511001 120 9" x 51" (229 mm x 1295 mm) 100 $1 878
HCW10471502 240 10" x 47" (254 mm x 1194 mm) 150 $1 898
HCW1047502 240 10" x 47" (254 mm x 1194 mm) 50 $1 898
HCW15431501 120 15" x 43" (381 mm x 1092 mm) 150 $2 070
HCW1543501 120 15" x 43" (381 mm x 1092 mm) 50 $2 070
