ATEX Hazardous-Area Gas Bottle Warmers

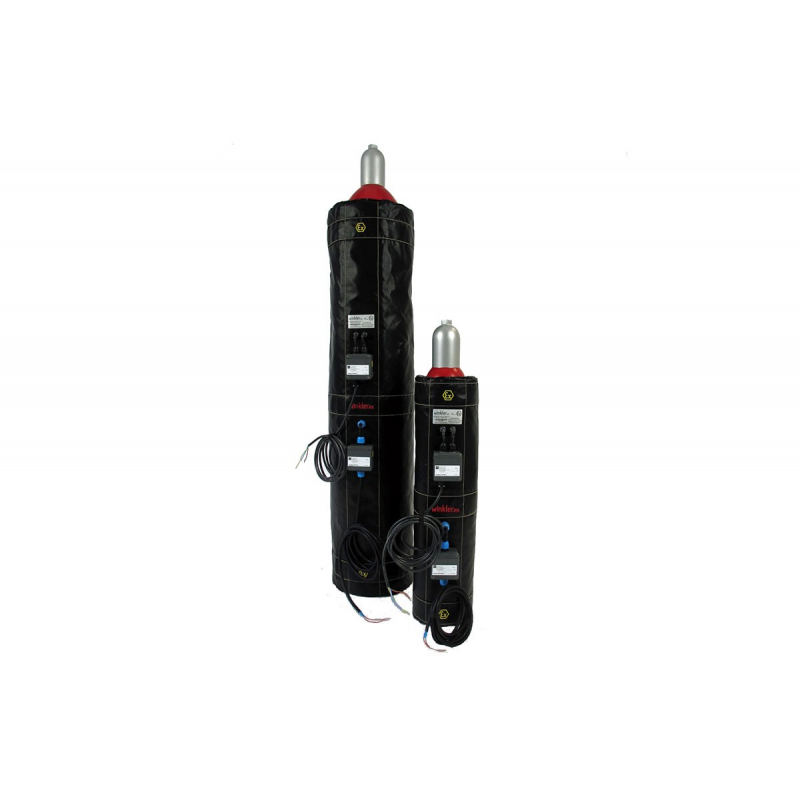

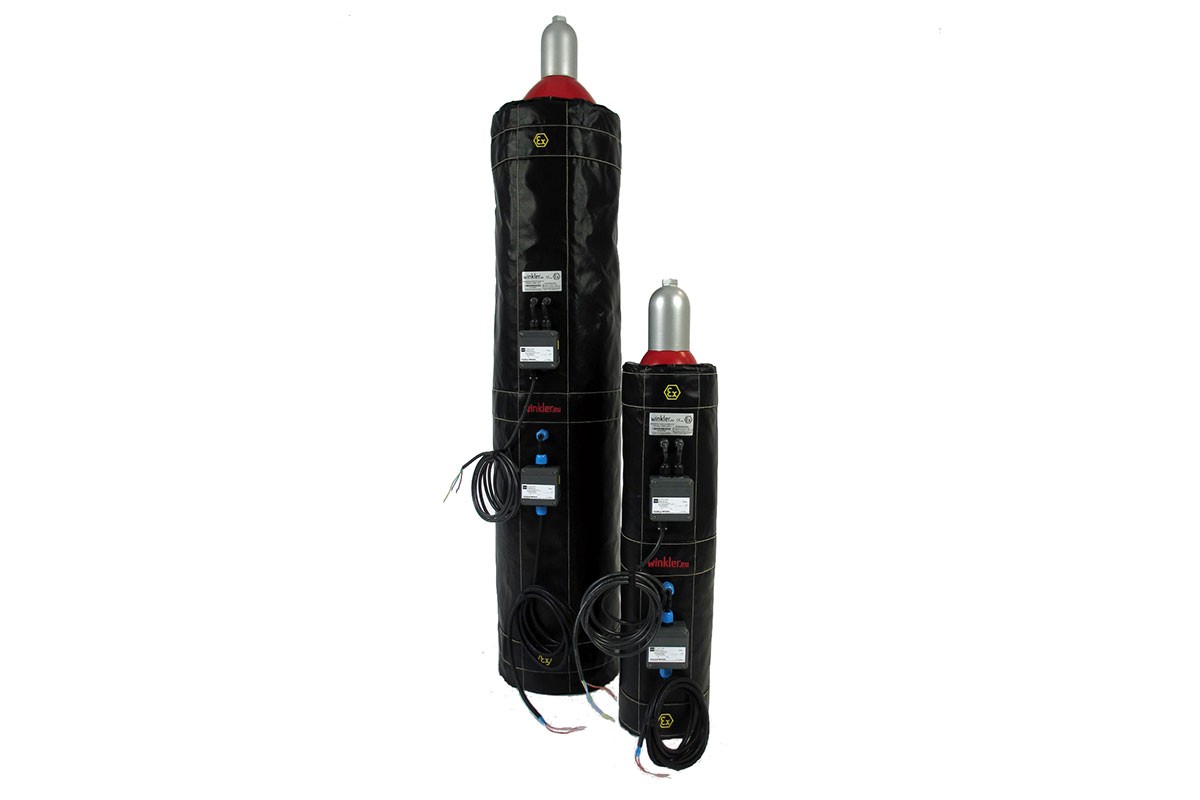

    ATEX Insulated Gas Cylinder Warmer. 230 VAC. 380 W. Fits 10 Litre Gas Bottles 870 mm x 140 mm. T3. ATEX II 2G/2D.

    Contact your local distributor or BriskHeat for more information.

    $3 296
    Add to wishlist
    Under the order

    ATEX Insulated Gas Cylinder Warmer. 230 VAC. 380 W. Fits 10 Litre Gas Bottles 870 mm x 140 mm. Inside Diameter 140 mm. Height 0,8 m. Includes 2 Built-In Ex-PT100 RTD Temperature Sensors. Maximum Operating Temperature 180°C. Maximum Ambient Operating Temperature -40°C to 60°C. 3,0 m Power Cord and Sensor Cables with Crimped Ferrule Terminated Leads. For Use in Potentially Explosive Gas and Dust Atmospheres. The Heater Must Be Temperature Controlled and Limited To The Required Temperature Class. T3. IP65. ATEX II 2G Ex e mb IIC T3 Gb, II 2D Ex e mb IIIC T120°C Db, -40°C ≤ Ta ≤ +60°C (ambient temperature), EC-type examination certificate TPS 11 ATEX 29587 011 X.

    Specifications:

    • Outer Material: Waterproof PTFE-coated glass fiber fabric
    • Insulation: 20 - 25 mm (0.8 to 1.0 in) glass needle mat
    • Nominal Voltage: 230 VAC
    • Nominal Power: 1200 W
    • Heating Element: Grounded for your safety
    • Operating Temperature:
      • -40°C to 200°C (-40°F to 392°F) (steel drum)
      • -40°C to 70°C (-40°F to 158°F) (plastic drum)
    • Temperature Class: T6, T5, T4, T3 (depending on temperature limiter setpoint)
    • Protection Ratings: IP65/I
    • Zones: 1/2 (gas); 21/22 (dust)
    • Sensor: 2 standard 3-wire PT100 RTD sensors
    • Power Cord: 3 m (10 ft) long with crimped ferrule terminated leads
    Part number voltage wattage Price
    WEXHB079-230ZE318-0100BHT3 230 850 $4 044
    WEXHB010-230ZE140-0080BHT3 230 380 $3 296
    WEXHB050-230ZE230-0140BHT3 230 850 $3 713
