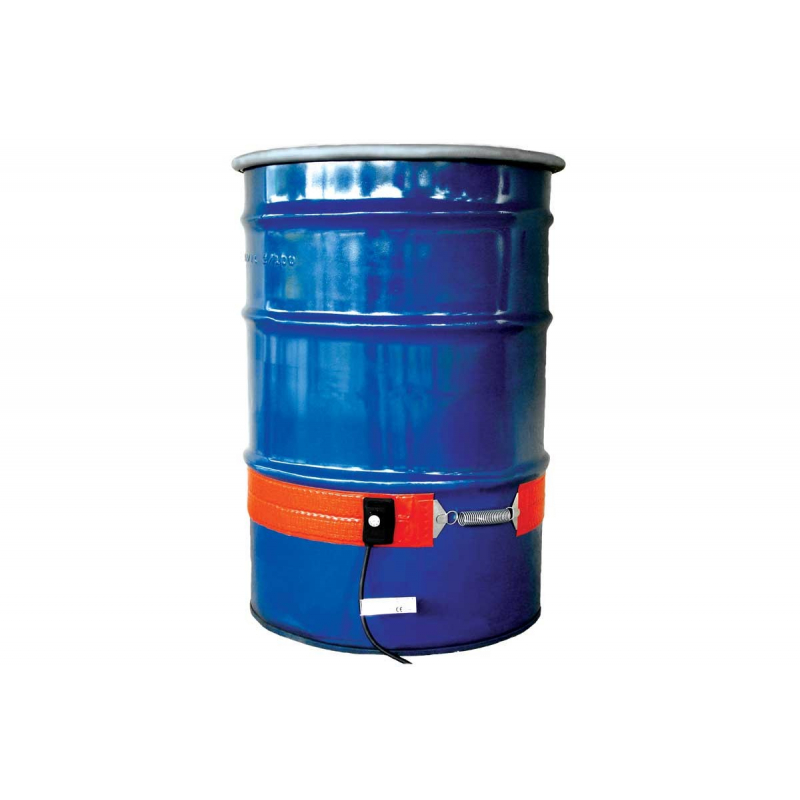

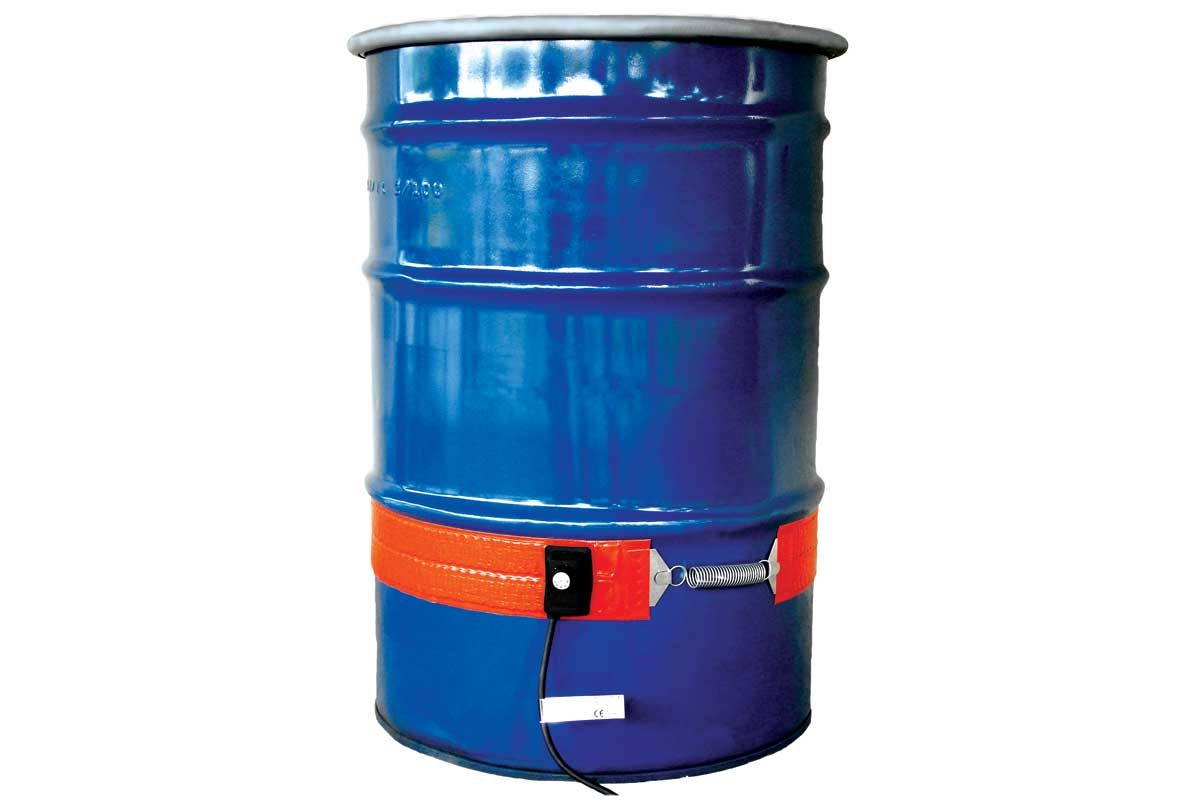

Silicone Rubber Drum/Pail Heaters (ECONO)
Silicone Rubber Drum/Pail Heaters (ECONO) is an Economical choice drum heaters for standard duty metal drum heating.
$123
Under the order
Silicone Rubber Drum/Pail Heaters (ECONO) is an Economical choice drum heaters for standard duty metal drum heating.
- Excellent solution for a wide range of metal drum heating applications.
- Easy-to-Use adjustable thermostat control.
- 3.6" (91mm) wide heater coverage.
- Designed for use with metal drums only.
- Moisture and chemical resistant.
- Durable reinforced silicone rubber provides excellent strength and flexibility for long service life.
- Heating element is laminated between two layers of 15mil fiberglass reinforced silicone rubber.
- Multi-stranded resistance wire heating element provides exceptional flexibility and durability.
- 360o grounded heating element is uniformly placed to maximize heat distribution and efficiency.
- 360° grounded heating element meets NEC 427.23.
- Adjustable thermostat control available in °F or °C (see ordering options).
- Adjustable thermostat operating range:
- Up to 425°F (10° to 218°C) for metal drums only
- Maximum exposure temperature: 450oF (232oC)
- Dielectric strength: Over 2000 volts
- Power cord: 6ft (1.8m) long with
- 120VAC: Standard 3-prong plug (NEMA 5-15)
- 240VAC: °F has crimped ferrule wire terminated leads
- The spring closure can be expanded up to 3" (76mm)
- Ingress Protection Rating: IP54
* If precise temperature control is required for your application, please contact us or your local distributor for application assistance.
Standard Drum & pail Heater Sizes
|
Size |
Diameter |
Heater Length |
Heater Width |
|
5 (19) |
11.1 (282) |
35.0 (889) |
4 (102) |
|
15 (57) & 16 (61) |
14.0 (355) |
44.0 (1118) |
4 (102) |
|
30 (114) |
18.6 (473) |
58.5 (1486) |
4 (102) |
|
55 (208) |
22.3 (566) |
70.0 (1778) |
4 (102) |
| Part number | voltage | Size | wattage | TEMPERATURE CONTROL RANGE | Price | |
|---|---|---|---|---|---|---|
| ECONO15-2 | 240 | 16 Gallon (61 Liter) | 500 | Up to 425°F (218°C) | $138 | |
| ECONO30-1 | 120 | 30 Gallon (114 Liter) | 750 | Up to 425°F (218°C) | $144 | |
| ECONO30-2 | 240 | 30 Gallon (114 Liter) | 750 | Up to 425°F (218°C) | $144 | |
| ECONO55-1 | 120 | 55 Gallon (208 Liter) | 1100 | Up to 425°F (218°C) | $148 | |
| ECONO5-1 | 120 | 5 Gallon (19 Liter) | 300 | Up to 425°F (218°C) | $123 | |
| ECONO55-2 | 240 | 55 Gallon (208 Liter) | 1100 | Up to 425°F (218°C) | $148 | |
| ECONO5-2 | 240 | 5 Gallon (19 Liter) | 300 | Up to 425°F (218°C) | $123 | |
| ECONO15-1 | 120 | 16 Gallon (61 Liter) | 500 | Up to 425°F (218°C) | $138 |
