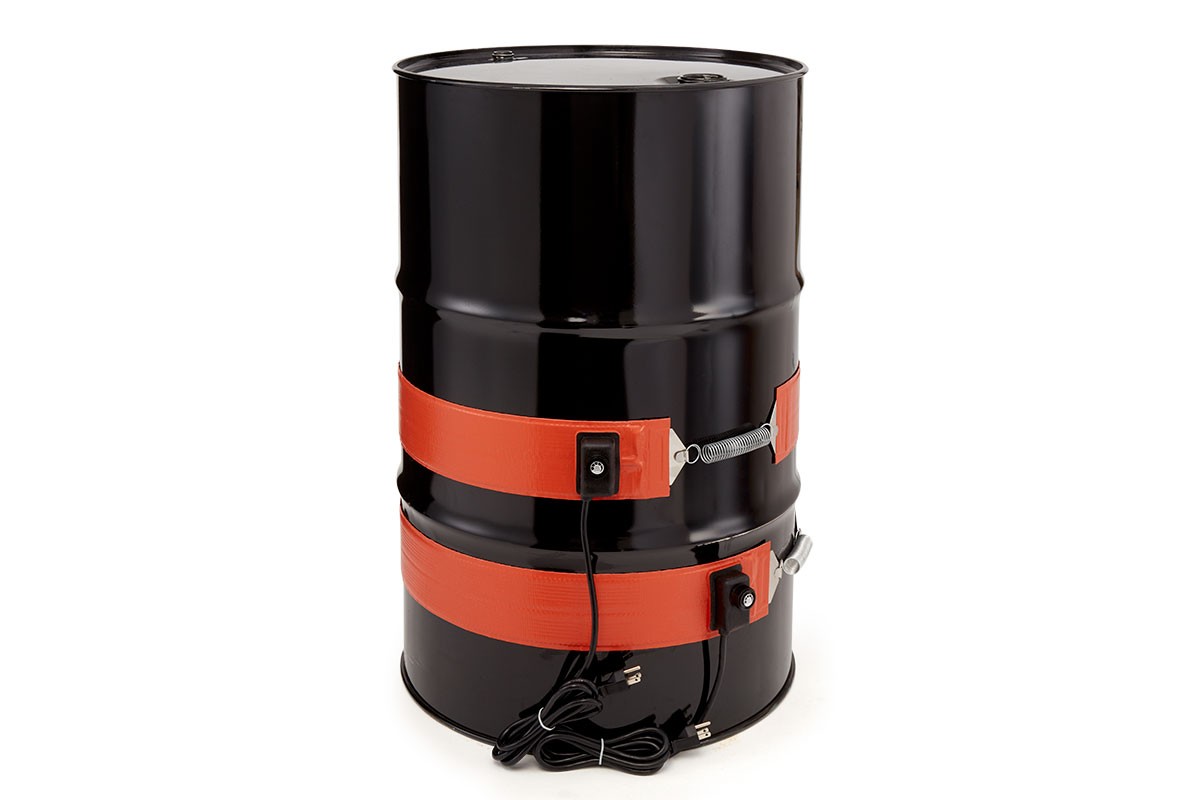

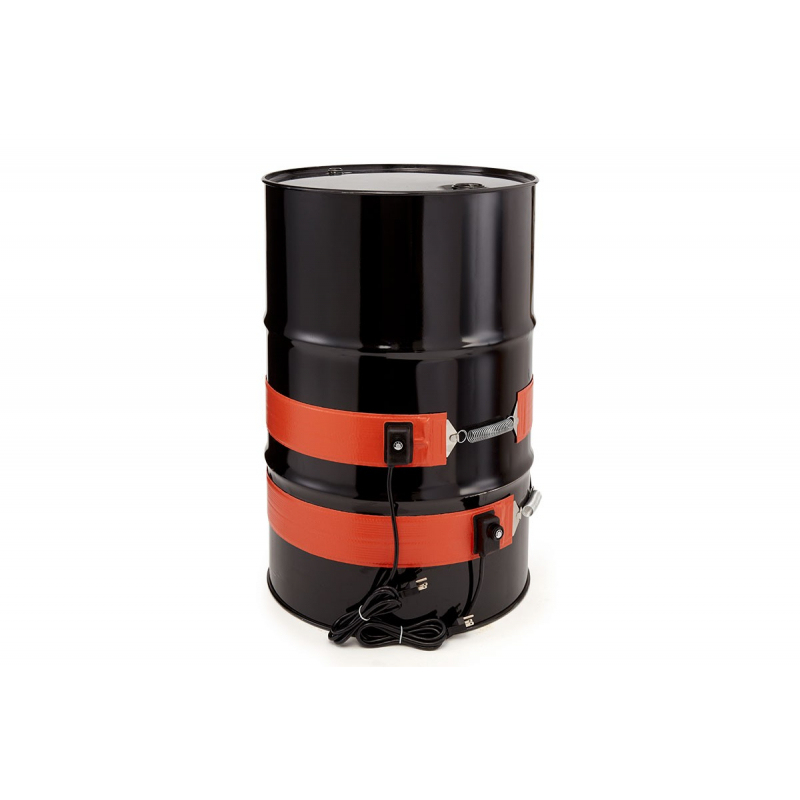

Heavy-Duty Silicone Rubber Drum/Pail Heaters (DHCS/DPCS)

BriskHeat® Drum and Pail Heaters are designed to provide practical, efficient means of freeze protection, viscosity control, and maintenance of materials at elevated temperatures. A variety of standard sizes are combined with availability of configure-to-order designs to meet your application requirements. All-in-one, Portable, Built-in Adjustable thermostat.

$140
Add to wishlist
Under the order

BriskHeat® Drum and Pail Heaters are designed to provide practical, efficient means of freeze protection, viscosity control, and maintenance of materials at elevated temperatures. A variety of standard sizes are combined with availability of configure-to-order designs to meet your application requirements. All-in-one, Portable, Built-in Adjustable thermostat.

Heavy-Duty Silicone Rubber Drum Heater Overview:

  • 360° Grounded Heating Element
  • Easy-to-use adjustable thermostat control.
  • Extra-wide 4" (102mm) wide heater coverage.
  • Excellent solution for a wide range of poly and metal drum heating applications.
  • Can be used on metal and plastic drums.
  • Moisture and chemical resistant.
  • Durable reinforced silicone rubber provides excellent strength and flexibility for long service life.
  • Adjustable thermostat operating range:
    • Up to 425°F (10° to 218°C) for metal drums
    • Up to 160°F (10° to 71°C) for poly drums
  • Maximum exposure temperature: 450°F (232°C)
  • Dielectric strength: Over 2000 volts
  • Power cord: 6ft (1.8m) long with
    • 120VAC: Standard 3-prong plug (NEMA 5-15)
    • 240VAC: °F has bare wire leads
  • Ingress Protection Rating: IP54
  • The spring closure can be expanded up to 3" (76mm)

* If precise temperature control is required for your application, please contact us or your local distributor for application assistance.

Standard Drum & pail Heater Sizes

Size
Gallon (Liter)

Diameter
in (mm)

Heater Length
in (mm)

Heater Width
in (mm)

5 (19)

11.1 (282)

35.0 (889)

4 (102)

15 (57) & 16 (61)

14.0 (355)

44.0 (1118)

4 (102)

30 (114)

18.6 (473)

58.5 (1486)

4 (102)

55 (208)

22.3 (566)

70.0 (1778)

4 (102)
Part number voltage Size wattage TEMPERATURE CONTROL RANGE Type Power plug type Price
DHCS10A 120 5 Gallon (19 Liter) 550 Up to 425°F (218°C) For Metal No Plug (Bare Wire Leads) - CSA Approved $140
DPCS21A 240 16 Gallon (61 Liter) 200 Up to 160°F (71°C) For Plastic No Plug (Bare Wire Leads) - CSA Approved $153
DPCS11 120 16 Gallon (61 Liter) 200 Up to 160°F (71°C) For Plastic NEMA 5-15 $153
DPCS13A 120 30 Gallon (114 Liter) 250 Up to 160°F (71°C) For Plastic No Plug (Bare Wire Leads) - CSA Approved $175
DHCS23 240 30 Gallon (114 Liter) 1000 10°C to 218°C For Metal No Plug (Bare Wire Leads) - CSA Approved $175
DHCS25A 240 55 Gallon (208 Liter) 1200 Up to 425°F (218°C) For Metal No Plug (Bare Wire Leads) - CSA Approved $188
DHCS15 120 55 Gallon (208 Liter) 1200 Up to 425°F (218°C) For Metal NEMA 5-15 $188
DHCS10 120 5 Gallon (19 Liter) 550 Up to 425°F (218°C) For Metal NEMA 5-15 $140
DHCS20A 240 5 Gallon (19 Liter) 550 Up to 425°F (218°C) For Metal No Plug (Bare Wire Leads) - CSA Approved $140
DHCS11A 120 16 Gallon (61 Liter) 700 Up to 425°F (218°C) For Metal No Plug (Bare Wire Leads) - CSA Approved $153
DPCS23A 240 30 Gallon (114 Liter) 250 Up to 160°F (71°C) For Plastic No Plug (Bare Wire Leads) - CSA Approved $175
DPCS13 120 30 Gallon (114 Liter) 250 Up to 160°F (71°C) For Plastic NEMA 5-15 $175
DPCS15A 120 55 Gallon (208 Liter) 300 Up to 160°F (71°C) For Plastic No Plug (Bare Wire Leads) - CSA Approved $188
DHCS25 240 55 Gallon (208 Liter) 1000 10°C to 218°C For Metal No Plug (Bare Wire Leads) - CSA Approved $188
DPCS10A 120 5 Gallon (19 Liter) 150 Up to 160°F (71°C) For Plastic No Plug (Bare Wire Leads) - CSA Approved $140
DHCS20 240 5 Gallon (19 Liter) 550 10°C to 218°C For Metal No Plug (Bare Wire Leads) - CSA Approved $140
DHCS11 120 16 Gallon (61 Liter) 700 Up to 425°F (218°C) For Metal NEMA 5-15 $153
DHCS21A 240 16 Gallon (61 Liter) 700 Up to 425°F (218°C) For Metal No Plug (Bare Wire Leads) - CSA Approved $153
DHCS13A 120 30 Gallon (114 Liter) 1000 Up to 425°F (218°C) For Metal No Plug (Bare Wire Leads) - CSA Approved $175
DPCS25A 240 55 Gallon (208 Liter) 300 Up to 160°F (71°C) For Plastic No Plug (Bare Wire Leads) - CSA Approved $188
DPCS15 120 55 Gallon (208 Liter) 300 Up to 160°F (71°C) For Plastic NEMA 5-15 $188
DPCS20A 240 5 Gallon (19 Liter) 150 Up to 160°F (71°C) For Plastic No Plug (Bare Wire Leads) - CSA Approved $140
DPCS10 120 5 Gallon (19 Liter) 150 Up to 160°F (71°C) For Plastic NEMA 5-15 $140
DPCS11A 120 16 Gallon (61 Liter) 200 Up to 160°F (71°C) For Plastic No Plug (Bare Wire Leads) - CSA Approved $153
DHCS21 240 16 Gallon (61 Liter) 700 Up to 425°F (218°C) For Metal Bare Wire Leads - "A" $153
DHCS13 120 30 Gallon (114 Liter) 1000 Up to 425°F (218°C) For Metal NEMA 5-15 $175
DHCS23A 240 30 Gallon (114 Liter) 1000 Up to 425°F (218°C) For Metal No Plug (Bare Wire Leads) - CSA Approved $175
DHCS15A 120 55 Gallon (208 Liter) 1200 Up to 425°F (218°C) For Metal No Plug (Bare Wire Leads) - CSA Approved $188
