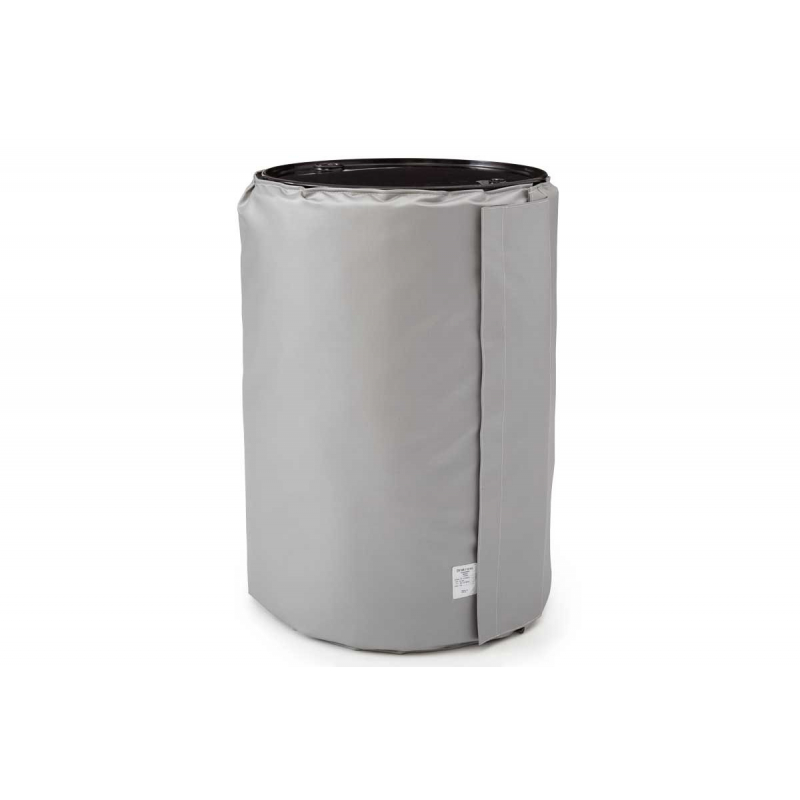

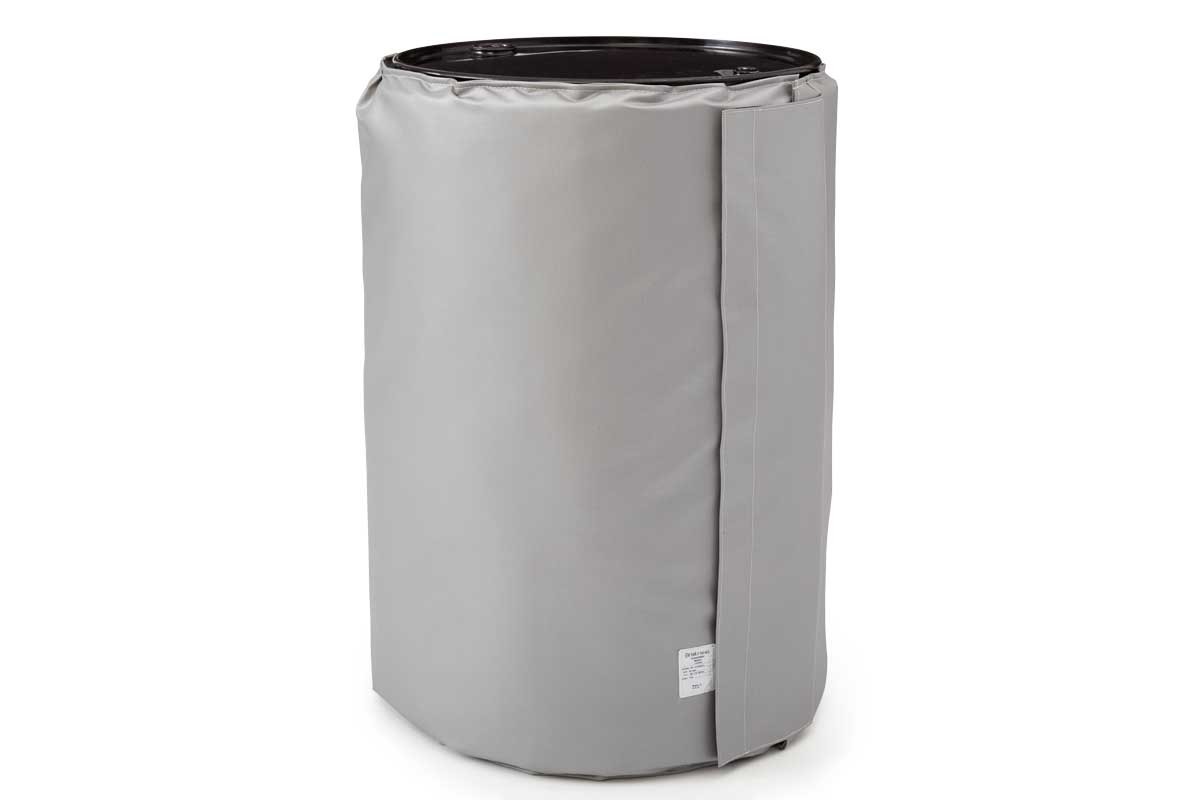

Full Coverage Drum Insulators (FGDI)

    Full Coverage Drum Insulators (FGDI)

    $412
    Add to wishlist
    Under the order

    Full Coverage Drum Insulators / Heater Blanket insulators are ideal for reducing heat loss and to help keep contents from freezing in cold temperatures. Easy to use wrap around design.

    • Reducing Drum Heat Loss
    • Designed to wrap around a drum providing insulation to keep the heat exactly where it needs to be.
    • Can be used with a Silicone Drum Heater to maximize heat efficiency and heat-up time.
    • Inner Material: Silicone impregnated cloth
    • Outer Material: Silicone impregnated cloth
    • Insulation: 1" (25mm) fiberglass insulation
    • Fits standard drum size: 55 gallon (208 liters) / 22.3 in (566 mm) Diameter
    • Closure: Hook and loop fastener
    • Maximum exposure temperature: 500oF (260oC) on heating surface
    • Designed for indoor use only Standard Drum & pail Heater Sizes
    • Ingress Protection: IP50

    Standard Drum & pail Heater Sizes

    55 (208) 22.3 (566) 22.3 (566)

    Size Gallon (Liter)
    Insulator Diameter
    in (mm)
    Insulator Height
    in (mm)
    30(114) 18.6 (473) 18.6 (473)

    * 55 gallon models can be expanded to fit up to 24.2" (615mm) diameter drums by using an expansion strip. See drum heater accessories for more information.
