HRN-PT Radiator Heater for Control Cabinets
$54,34
Under the order

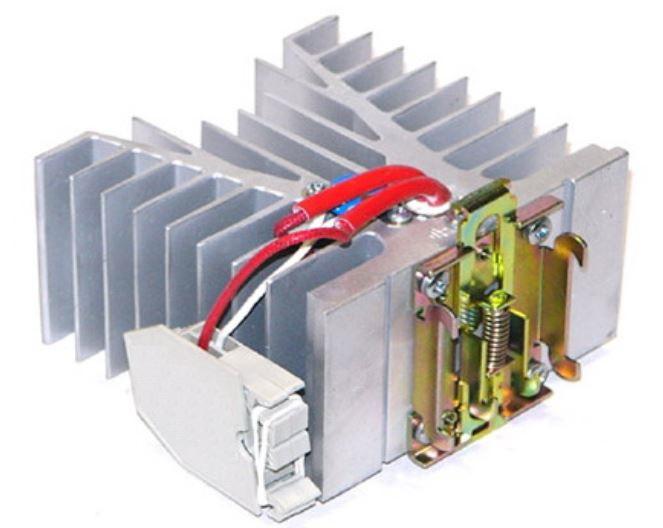

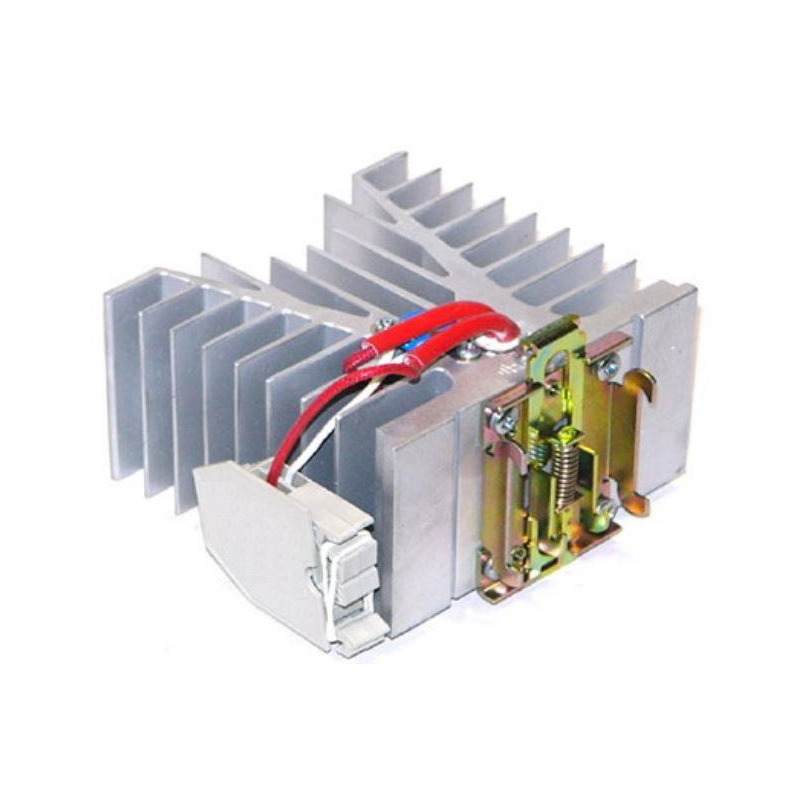

- The HRN-PT Radiator Heater is designed for ensure the required temperature inside Electrical Control Cabinets which allows providing the correct operating conditions.
- Heating inside the cabinets located outside the buildings, avoids condensation of moisture and provides excellent frost protection - the temperature inside the cabinet is maintained above the dew point level.
- The large surface of the aluminum radiator of the heater allows to provided heat transfer inside the cabinet.
- Heater Specification:
- Aluminum radiator;
- Cartridge heating element;
- Automatic temperature limiter T max = 85 °C;
- Terminal block for power connection;
- DIN rail connectors.
- The heater is mounted to DIN 35 mm rail with a plug and a clip.
- Recommended to install heater at the bottom of the cabinet at a distance about 40 cm from the electrical equipment installed in the cabinet.
| Part number | voltage | Size | wattage | Price | |
|---|---|---|---|---|---|
| HRN-PT-60-230 | 230 | 110x65x114 | 60 | $54,34 | |
| HRN-PT-100-230 | 230 | 110x65x114 | 100 | $55,85 | |
| HRN-PT-250-230 | 230 | 110x115x114 | 250 | $68,68 |
